Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 17.3 Inch |
|---|---|---|---|
| Resolution: | 1920×1080 | Display Mode: | TN, Normally White, Transmissive |
| Contrast Ratio: | 400:1 (Typ.) | Outline: | 398.1×232.8×5.8 Mm |
| High Light: | tft lcd display,innolux lcd screen |
||

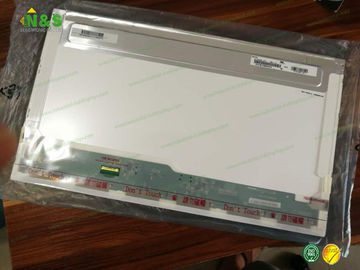

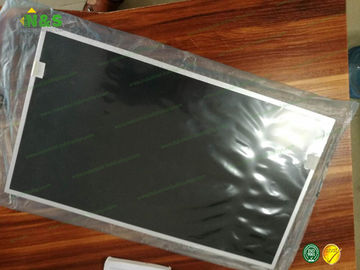

Normally White 17.3 inch N173HGE-E21 1920×1080 resolution Outline 398.1×232.8×5.8 mm Frequency 60Hz
N173HGE-E21 Basic Information
| Panel Model | N173HGE-E21 |
| Panel Brand | CHIMEI INNOLUX |
| Descrition | a-Si TFT-LCD ,17.3 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | eDP1.2 |
N173HGE-E21 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 127 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0663×0.1989 mm (H×V) |
| Pixel Pitch | 0.1989×0.1989 mm (H×V) |
| Weight | 555/570g (Typ./Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Active Area | 381.888×214.812 mm (H×V) |
| Bezel Area | 386.18×218.85 mm (H×V) |
| Outline Dimension | 398.1×232.8 mm (H×V) |
| Outline Depth | 5.5/5.8 (Typ./Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Side mounting holes (8-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3. Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4. long-term partner:
* Products are sold to more than 20 countries.
5. Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
N173HGE-E21 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AT070TN90 | Innolux | 7.0" | 800×480 |
| PH030NA-04A | Innolux | 3.0" | 240×400 |
| EE090NA-01C | Innolux | 9.0" | 1280×800 |
| EE080NA-06A | Innolux | 8.0" | 800×600 |
| AT080TN60 | Innolux | 8.0" | 800×480 |
| EE070NA-01L | Innolux | 7.0" | 1024×600 |
| EE070NA-01D | Innolux | 7.0" | 1024×600 |
| AT070TN90 V.1 | Innolux | 7.0" | 800×480 |
| AT070TN00 V.1 | Innolux | 7.0" | 480×234 |
| AT050TN30 | Innolux | 5.0" | 480×272 |
| LW700AT6005 | Innolux | 7.0" | 800×480 |
