Product Details:
|
| Panel Size: | 11.6 Inch | Resolution: | 1366×768 |
|---|---|---|---|
| Active Area: | 256.125×144 Mm | Outline: | 268×157.5×3 Mm |
| Contrast Ratio: | 600:1 (Typ.) | Frequency: | 60Hz |
| High Light: | tft lcd display,innolux lcd screen |
||

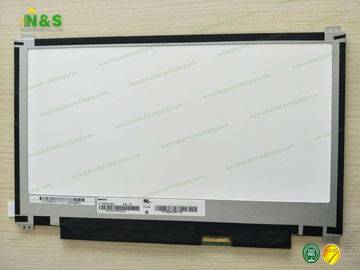

N116BGE-EB2 INNOLUX 11.6 inch Active Area 256.125×144 mm Contrast Ratio 600:1 (Typ.) new and original
N116BGE-EB2 Basic Information
| Panel Model | N116BGE-EB2 |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,11.6 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N116BGE-EB2 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 135 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0625×0.1875 mm (H×V) |
| Pixel Pitch | 0.1875×0.1875 mm (H×V) |
| Weight | 200/210g (Typ./Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Active Area | 256.125×144 mm (H×V) |
| Outline Dimension | 268×157.5 mm (H×V) |
| Outline Depth | 2.85/3.0 (Typ./Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M236HGE-P02 | Innolux | 23.6" | 1920×1080 |
| M215HGE-P03 | Innolux | 21.5" | 1920×1080 |
| V236H3-PS1 | Innolux | 23.6" | 1920×1080 |
| HE050NA-01F | Innolux | 5.0" | 800×480 |
| M236HGE-P01 | Innolux | 23.6" | 1920×1080 |
| M215HGE-P01 | Innolux | 21.5" | 1920×1080 |
| AT070TN90 | Innolux | 7.0" | 800×480 |
| PH030NA-04A | Innolux | 3.0" | 240×400 |
| EE090NA-01C | Innolux | 9.0" | 1280×800 |
| EE080NA-06A | Innolux | 8.0" | 800×600 |
| AT080TN60 | Innolux | 8.0" | 800×480 |
