Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Resolution: | 1920×1080 | Active Area: | 344.16×193.59 Mm |
| Outline: | 359.5×220.3×3.2 Mm | Frequency: | 60Hz |
| High Light: | lcd display panel,innolux lcd screen |
||
LMG7380QHFC 15.6 inch FSTN-LCD Screen Module 256×64 resolution Surface Antiglare, Hard coating (3H)

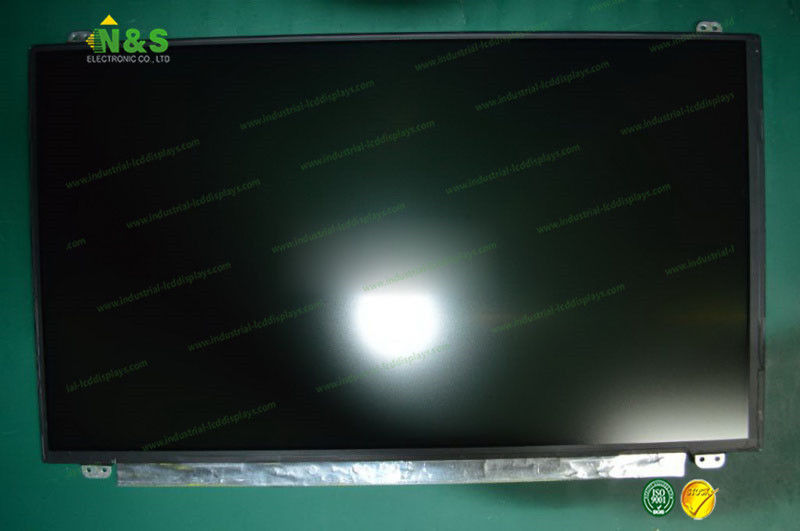

N156HGE-EAB Basic Information
| Panel Model | N156HGE-EAB |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | eDP1.2 |
N156HGE-EAB Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 141 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.05975×0.17925 mm (H×V) |
| Pixel Pitch | 0.17925×0.17925 mm (H×V) |
| Weight | 350/360g (Typ./Max.) |
| Surface | Antiglare (Haze 24%), Hard coating (3H) |
| Active Area | 344.16×193.59 mm (H×V) |
| Outline Dimension | 359.5×220.3 mm (H×V) |
| Outline Depth | 3.05/3.2 (Typ./Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N156HGE-EAB Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 3/8 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.54 (Max.)(5/13 points) |
| Sunlight Readable | N |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F050A13-603 | Innolux | 5.0" | 720×1280 |
| V500DK2-QS1 | Innolux | 50" | 3840×2160 |
| M270HGE-P01 | Innolux | 27.0" | 1920×1080 |
| V850DK1-QS1 Rev.C1 | Innolux | 85" | 3840×2160 |
| V580DK1-QS2 | Innolux | 58" | 3840×2160 |
| CP047BN01 | Innolux | 4.7" | 720×1280 |
| PH040NA-01C | Innolux | 4.0" | 480×800 |
| HE080IA-06B | Innolux | 8.0" | 800×1280 |
| V580DK2-QS1 | Innolux | 58" | 3840×2160 |
| P101JEA-3Z1 | Innolux | 10.1" | 1920×1200 |
| P101DBZ-3Z1 | Innolux | 10.1" | 800×1280 |
