Product Details:
|
Panel Size: | 5.0 Inch | Resolution: | 640×480 |
---|---|---|---|
Active Area: | 101.57×76.18 Mm | Surface: | Antiglare |
Frequency: | 60Hz | ||
High Light: | tft lcd display,innolux lcd screen |

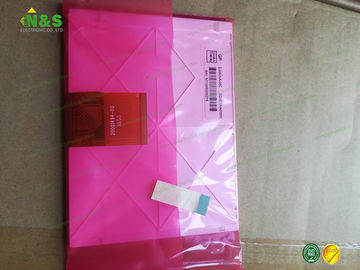

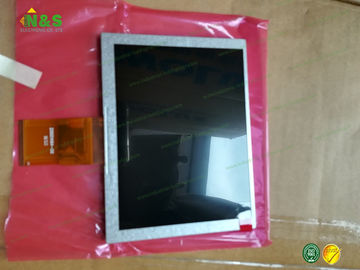

Normally White ZJ050NA-08C 5.0 inch INNOLUX 640×480 Outline 117.65×88.43×5.9 mm Frequency 60Hz
ZJ050NA-08C Basic Information
Panel Model | ZJ050NA-08C |
Panel Brand | INNOLUX |
Descrition | a-Si TFT-LCD ,5.0 inch, 640×480 |
Panel Type | a-Si TFT-LCD |
Operating Temperature | -20 ~ 70 °C |
Storage Temperature | -30 ~ 80 °C |
ZJ050NA-08C Mechanical Features
Dot Resolution | 640(RGB)×480 (VGA) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 160 PPI |
Aspect Ratio | 4:3 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.053×0.159 mm (H×V) |
Pixel Pitch | 0.159×0.159 mm (H×V) |
Weight | 67g (Typ.) |
Surface | Antiglare |
Active Area | 101.57×76.18 mm (H×V) |
Outline Dimension | 117.65×88.43 mm (H×V) |
Outline Depth | 5.7±0.2 mm |
Landscape or Portrait | Landscape type |
Touch Panel | Without |
ZJ050NA-08C Optical Features
Display Mode | TN, Normally White, Transmissive |
Brightness | 250 cd/m² (Typ.) |
Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
Display Color | 16.7M (8-bit) |
Color Gamut | 50% NTSC (CIE1931) |
Response Time | 10/15 (Typ.)(Tr/Td) |
Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction | 6 o'clock |
White color Chromaticity | Wx:0.310; Wy:0.330 |
White Variation | 1.33/1.43 (Max.)(9 points) |
Sunlight Readable | N |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
