Product Details:
|
Panel Size: | 7.0 Inch | Resolution: | 1280×800 |
---|---|---|---|
Active Area: | 149.76×93.6 Mm | Contrast Ratio: | 800:1 (Typ.) |
Outline: | 161.2×107.2×4.5 Mm | ||
High Light: | tft lcd display,innolux lcd screen |

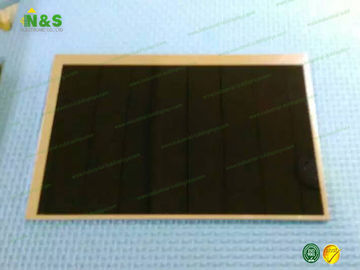

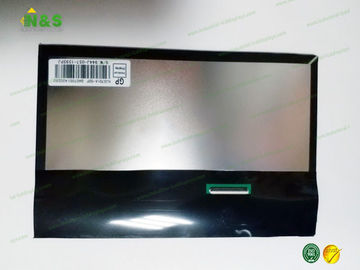

Normally Black INNOLUX HJ070IA-02F Industrial LCD Displays with 149.76×93.6 mm Active Area Frequency 60Hz
HJ070IA-02F Basic Information
Panel Model | HJ070IA-02F |
Panel Brand | INNOLUX |
Descrition | a-Si TFT-LCD ,7.0 inch, 1280×800 |
Panel Type | a-Si TFT-LCD |
Operating Temperature | -10 ~ 50 °C |
Storage Temperature | -20 ~ 60 °C |
HJ070IA-02F Mechanical Features
Dot Resolution | 1280(RGB)×800 (WXGA) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 217 PPI |
Aspect Ratio | 16:10 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.039×0.117 mm (H×V) |
Pixel Pitch | 0.117×0.117 mm (H×V) |
Weight | 101.6g |
Surface | Hard coating |
Active Area | 149.76×93.6 mm (H×V) |
Bezel Area | 151.76×95.6 mm (H×V) |
Outline Dimension | 161.2×107.2 mm (H×V) |
Outline Depth | 2.5/4.5 (Typ./Max.) mm |
Holes & Brackets | Without |
Landscape or Portrait | Landscape type |
Touch Panel | Without |
HJ070IA-02F Optical Features
Display Mode | IPS, Normally Black, Transmissive |
Brightness | 350 cd/m² (Typ.) |
Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
Display Color | 16.7M (8-bit) |
Color Gamut | 50% NTSC (CIE1931) |
Response Time | 15/20 (Typ.)(Tr/Td) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction | Symmetry |
White color Chromaticity | Wx:0.313; Wy:0.330 |
White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
Sunlight Readable | N |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Here comes our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
F050A13-603 | Innolux | 5.0" | 720×1280 |
V500DK2-QS1 | Innolux | 50" | 3840×2160 |
M270HGE-P01 | Innolux | 27.0" | 1920×1080 |
V850DK1-QS1 Rev.C1 | Innolux | 85" | 3840×2160 |
V580DK1-QS2 | Innolux | 58" | 3840×2160 |
CP047BN01 | Innolux | 4.7" | 720×1280 |
PH040NA-01C | Innolux | 4.0" | 480×800 |
HE080IA-06B | Innolux | 8.0" | 800×1280 |
V580DK2-QS1 | Innolux | 58" | 3840×2160 |
P101JEA-3Z1 | Innolux | 10.1" | 1920×1200 |
P101DBZ-3Z1 | Innolux | 10.1" | 800×1280 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Contact Person: savvy,ren
Tel: +8613302928193
