Product Details:
|
| Panel Type: | A-Si TFT-LCD | Dot Resolution: | 640(RGB)×480 (VGA) |
|---|---|---|---|
| Aspect Ratio: | 4:3 (H:V) | Surface: | Antiglare, Hard Coating (3H) |
| High Light: | nec lcd touch screen,nec lcd screen |
||

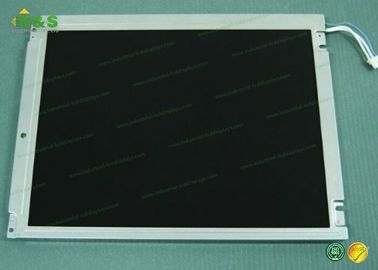

Normally White NL6448BC33-64D NEC 10.4inch Outline 243×185.1×11 mm Frequency 60Hz Contrast Ratio 600:1 (Typ.)
NL6448BC33-64D Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 76 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.110×0.330 mm (H×V) |
| Pixel Pitch | 0.330×0.330 mm (H×V) |
| Weight | 475/500g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 211.2×158.4 mm (H×V) |
| Bezel Area | 215.4×161.8 mm (H×V) |
| Outline Dimension | 243×185.1 mm (H×V) |
| Outline Depth | 10.5±0.5 mm |
| Holes & Brackets | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
NL6448BC33-64D Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 40% NTSC (CIE1931) |
| Response Time | 6/25 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable | N |
