Product Details:
|
| Panel Size: | 10.4 Inch | Resolution: | 800*600 |
|---|---|---|---|
| Aspect Ratio: | 4:3 (H:V) | Dot Pitch: | 0.088×0.264 Mm (H×V) |
| High Light: | nec tft lcd,nec lcd screen |
||

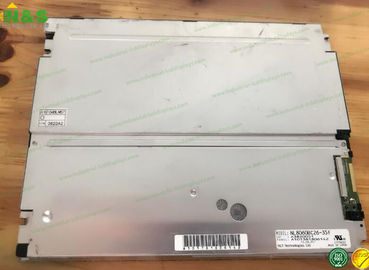

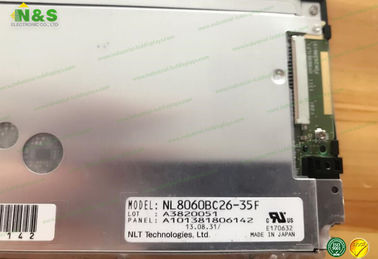

NL8060BC26-35f 800*600 TFT LCD MODULE Normally White 10.4 inch Surface Clear, Hard coating (3H)
NL8060BC26-35F Basic Information
| Panel Model | NL8060BC26-35F |
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,10.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Remarks | ColorXcell |
NL8060BC26-35F Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 800 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 40% NTSC (CIE1931) |
| Response Time | 3/15 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable | Y |
NL8060BC26-35F Electronics Feature
| Vertical Frequency | 60Hz |
| Reverse Scan | Yes (180°) |
| Total Power Consumption | 6.3W (Typ.) |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
We also have other industrial LCD panels, pls contact to us for the further information:
| Panel Model | Brand | Size | Resolution |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| AMS302AK03 | Samsung | 3.0" | 720×480 |
| AMS353FD01-0 | Samsung | 3.5" | 480×800 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
| H546DLB01.1 | AUO | 5.5" | 1080×1920 |
| E499HAM1 | EDO | 5.0" | 720×1280 |
| H429ALN01 V0 | AUO | 4.3" | 540×960 |
| AE320480C0FET00 | AMPIRE | 3.5" | 320×480 |
| H139BLN01.1 | AUO | 1.39" | 400×400 |
