Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 5.5 Inch |
|---|---|---|---|
| Resolution: | 320(RGB)×240 (QVGA) | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 111.36×83.52 Mm | Outline: | 134×110 Mm |
| High Light: | nec lcd touch screen,nec tft lcd |
||
Normally White 5.5 inch NL3224AC35-13 NEC LCD Display Panel Frequency 60Hz Active Area 111.36×83.52 mm
NL3224AC35-13 Basic Information:
| Panel Model | NL3224AC35-13 |
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,5.5 inch, 320×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -40 ~ 95 °C |
| Vibration Resistance | 3.0G (29.4 m/s²) |
NL3224AC35-13 Mechanical Features:
| Dot Resolution | 320(RGB)×240 (QVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 72 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.116×0.348 mm (H×V) |
| Pixel Pitch | 0.348×0.348 mm (H×V) |
| Weight | 315/330g (Typ./Max.) |
| Surface | Glare (Haze 0%) |
| Active Area | 111.36×83.52 mm (H×V) |
| Outline Dimension | 134×110 mm (H×V) |
| Outline Depth | 23.0 (Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

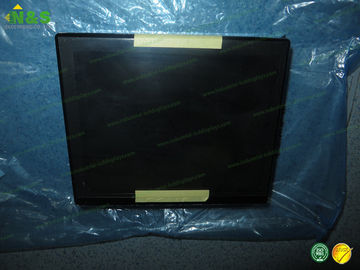

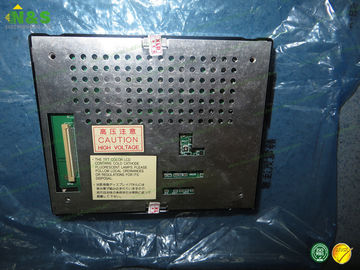

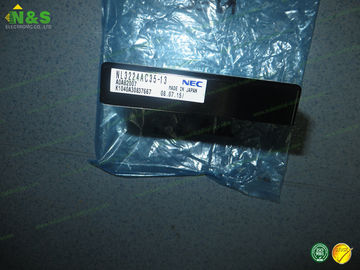

NL3224AC35-13 Picture
