Product Details:
|
| Panel Type: | A-Si TFT-LCD | Outline: | 396×324×20.5 Mm |
|---|---|---|---|
| Frequency: | 60Hz | Input Voltage: | 12.0V (Typ.) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

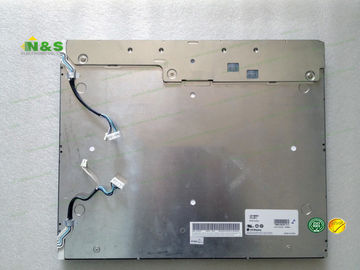

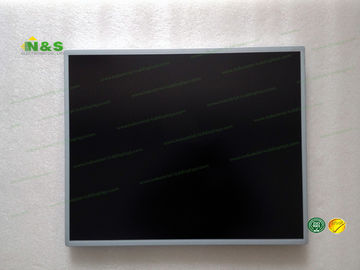

Normally Black LG Display LB190E01-SL01 19 inch Industrial LCD Displays for 60 HZ
LB190E01-SL01 Information
| Panel Model | LB190E01-SL01 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,19.0 inch, 1280×1024 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | IPS, Normally Black, Transmissive |
| Active Area | 376.32×301.056 mm |
| Outline | 396×324×20.5 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 900:1 (Typ.) |
| Display Colors | Grayscale (8-bit) |
| Response Time | 11/14 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Min.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 6 pcs CCFL Without Driver |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins |
LB190E01-SL01 Mechanical Features
| Dot Resolution | 1280(LCR)×1024 (SXGA) |
| Pixel Configuration | LCR Vertical Stripe |
| Pixel Density | 86 PPI |
| Aspect Ratio | 5:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.098×0.294 mm (H×V) |
| Pixel Pitch | 0.294×0.294 mm (H×V) |
| Weight | 2.59/2.70Kgs (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 376.32×301.056 mm (H×V) |
| Bezel Area | 380.3×305.0 mm (H×V) |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH300WQ1-ED01 | LG Display | 3.0" | 240×400 |
| LB050S01-RD02 | LG Display | 5.0" | 800×600 |
| LB050S01-RD01 | LG Display | 5.0" | 800×600 |
| LC430DUY-SHA3 | LG Display | 43" | 1920×1080 |
| LD490EPY-SHP1 | LG Display | 49" | 1920×1080 |
| LD550DPY-SHP1 | LG Display | 55" | 1920×1080 |
| LC490EGY-SHM3 | LG Display | 49" | 3840×2160 |
| LH550WF3-SH01 | LG Display | 5.5" | 1080×1920 |
| LC320DXY-SHA3 | LG Display | 31.5" | 1366×768 |
