Product Details:
|
| Size: | 12.1 Inch | Resolution: | 800*600 |
|---|---|---|---|
| Brightness: | 450 | C/R: | 800:1 |
| View Angle: | 80/80/60/80 | Best View On: | 6 O'clock |
| Response Time: | 4/12 (Typ.)(Tr/Td) | Display Colors: | 262K/16.7M 75% NTSC |
| Lamp Type: | WLED , 100K Hours , With LED Driver | Touch Screen: | Without |
| Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins Connector | Input Voltage: | 3.3V (Typ.) |
| High Light: | AC121SA01 Industrial LCD Displays,AC121SA01,AC121SA0 LCD Displays |
||

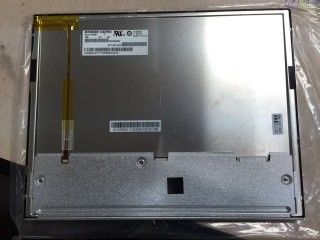

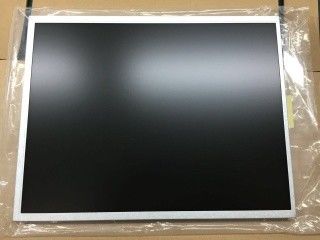

12.1 Inch Wide Temperature AC121SA01 Industrial LCD Displays
1.Mitsubishi AC121SA01 Mechanical Details:
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.1025×0.3075 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.3075×0.3075 (H×V) [82PPI] | |
| Mechanical Size : | Active Area(mm) | 246(H) × 184.5(V) | Bezel Area(mm) | 249.0(H) × 187.5(V) |
| Outline Dim.(mm) | 260(H) × 203(V) | Depth(mm) | 9.5 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 580g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
2.Mitsubishi AC121SA01 Optical Details:
| Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 4/12 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 75% | sRGB | 95% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 77% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3.Mitsubishi AC121SA01 Backlight Details:
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | No | Quantity | - | Life Time | 100K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-S6P-HFE | 1 pcs | 6 pins | 1.25 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 450/480/560mA (Min./Typ./Max.) | ||
| Consumption | 5.8/6.1W (Typ./Max.) | |||||
4. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q4: Do you accept sample order?
A: Yes,sample order is welcome.
Q5: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
