Product Details:
|
| Panel Size: | 3.5 Inch | Frequency: | 60Hz |
|---|---|---|---|
| Panel Model: | NL2432HC22-41K | Pixel Format: | RGB Vertical Stripe |
| High Light: | industrial touch screen display,industrial lcd panel |
||

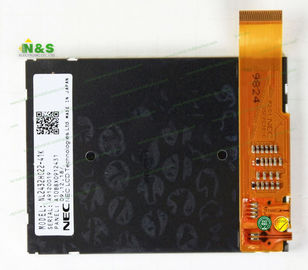

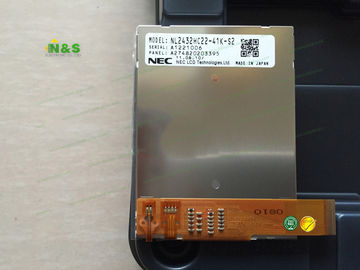

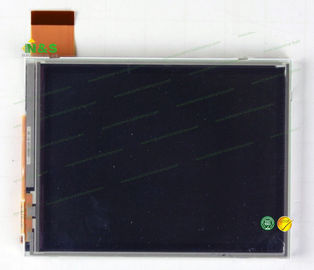

Normally White NL2432HC22-41K 3.5 inch LCD screen for Handheld Product
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
NL2432HC22-41K Information
| Panel Model | NL2432HC22-41K |
| Panel Brand | NLT |
| Descrition | a-Si TFT-LCD ,3.5 inch, 240×320 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transflective |
| Active Area | 53.64×71.52 mm |
| Outline | 63.5×85×7 mm |
| Surface | Clear, Hard coating (3H) |
| Contrast Ratio | 150:1 (Typ.)(Transmissive) 15:1 (Typ.)(Reflective) |
| Display Colors | 262K (6-bit) , CIE1931 40% |
| Response Time | 7/23 (Typ.)(Tr/Td) |
| Viewing Angle | 30/30/30/35 (Typ.)(CR≥5) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 6S1P WLED Without Driver |
| Signal Interface | CMOS (1 ch, 6-bit) + SPI , 45 pins |
| Input Voltage | 3.0V (Typ.) |
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NL6448HL11-02 | NLT | 3.5" | 640×480 |
| NL12876AC18-03KD | NLT | 10.6" | 1280×768 |
| NL12876AC18-03BD | NLT | 10.6" | 1280×768 |
| NL10276BC13-01BD | NLT | 6.5" | 1024×768 |
| NL10276BC28-27E | NLT | 14.1" | 1024×768 |
| NL10276BC28-24C | NLT | 14.1" | 1024×768 |
| NL2432HC22-30B | NLT | 3.5" | 240×320 |
| NL1216ER26-02 | NLT | 2.0" | 120×160 |
| NLB150XG01L-01BD | NLT | 15.0" | 1024×768 |
| NL10276BC30-34BD | NLT | 15.0" | 1024×768 |
| NL10276BC24-21BD | NLT | 12.1" | 1024×768 |
| NL10276BC20-18KH | NLT | 10.4" | 1024×768 |
| NL8048BC19-02BD | NLT | 7.0" | 800×480 |
We also have other industrial LCD panels, pls contact to us for the further information
