Product Details:
|
| Diagonal Size: | 3.5 Inch | Luminance: | 200 Cd/m² (Typ.) |
|---|---|---|---|
| Model: | NL2432HC22-50B | Response Time: | 7/23 (Typ.)(Tr/Td) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

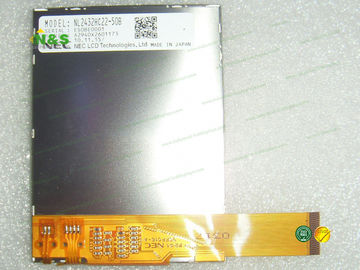

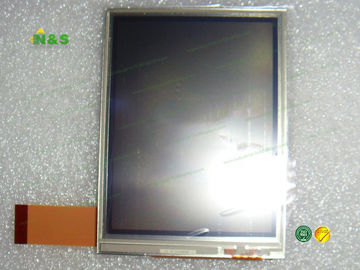

Normally White NL2432HC22-50B NLT 3.5 inch Industrial LCD Displays for 60Hz
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
LTM08C351L Information
| Panel Model | NL2432HC22-50B |
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,3.5 inch, 240×320 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transflective |
| Active Area | 53.64×71.52 mm |
| Outline | 63.5×84.2 mm |
| Surface | Clear, Hard coating (3H) |
| Contrast Ratio | 150:1 (Typ.)(Transmissive) 15:1 (Typ.)(Reflective) |
| Display Colors | 262K (6-bit) , CIE1931 40% |
| Response Time | 7/23 (Typ.)(Tr/Td) |
| Viewing Angle | 35/35/35/35 (Typ.)(CR＞5) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLED Without Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit) + SPI , 45 pins |
| Input Voltage | 3.0V (Typ.) |
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NL10276BC20-11 | NLT | 10.4" | 1024×768 |
| NL10276BC28-01 | NLT | 14.1" | 1024×768 |
| NL9654HL06-01J | NLT | 2.7" | 960×540 |
| NL8060BC31-47C | NLT | 12.1" | 800×600 |
| NL8060BC31-18A | NLT | 12.1" | 800×600 |
| NL8060BC31-17-CIS | NLT | 12.1" | 800×600 |
| NL8060BC26-24 | NLT | 10.4" | 800×600 |
| NL8060BC26-23 | NLT | 10.4" | 800×600 |
| NL8060BC26-21 | NLT | 10.4" | 800×600 |
| NL8060BC26-20Y | NLT | 10.4" | 800×600 |
| NL8048BC24-06 | NLT | 9.0" | 800×480 |
| NL8048BC19-11D | NLT | 7.0" | 800×480 |
| NL8048BC19-08D | NLT | 7.0" | 800×480 |
| NL8048BC19-08 | NLT | 7.0" | 800×480 |
We also have other industrial LCD panels, pls contact to us for the further information
