Product Details:
|
| Descrition: | A-Si TFT-LCD ,9.0 Inch | Frequency: | 60Hz |
|---|---|---|---|
| Lamp Type: | 5S5P WLED Without Driver | Signal Interface: | LVDS (1 Ch, 8-bit) , 60 Pins |
| High Light: | industrial touch screen display,industrial lcd screen |
||

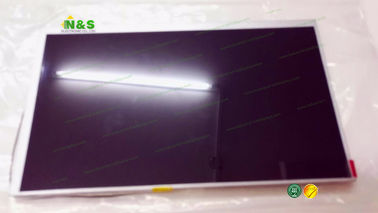

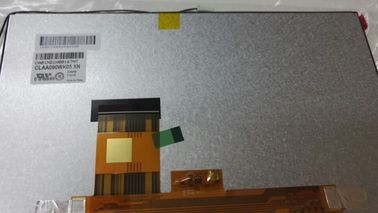

CPT CLAA090WK05XN 9 inch LCD display screen a-Si TFT-LCD
CLAA090WK05XN Information:
| Panel Model | CLAA090WK05XN |
| Panel Brand | CPT |
| Descrition | a-Si TFT-LCD ,9.0 inch, 1280×720 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | FFS, Normally Black, Transmissive |
| Active Area | 198.912×111.888 mm |
| Outline | 210.7×124.1×6.3 mm |
| Surface | Antiglare |
| Contrast Ratio | 900:1 (Typ.) |
| Display Colors | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAG045LJ72 | CPT | 4.5" | 480×854 |
| CLAN050WD61 6XM | CPT | 5.0" | 720×1280 |
| CLAD015GC41 AX | CPT | 1.5" | 240×240 |
| CLAA090WK05XN | CPT | 9.0" | 1280×720 |
| CLAC080XA12LW | CPT | 8.0" | 1024×768 |
| CLAD015GB01 AX | CPT | 1.5" | 240×240 |
| CLAG045LG71 XX | CPT | 4.5" | 480×854 |
| CLAG045LH41 AXXA | CPT | 4.5" | 480×854 |
| CLAF020GC21A0 | CPT | 2.0" | 240×320 |
| CLAN080WQ65 XG | CPT | 8.0" | 800×1280 |
| CLAN070NQ06 | CPT | 7.0" | 1024×600 |
