Product Details:
|
| Series: | LB121S02 | Keywords Desc.: | LG Display 12.1" TN LCM 800×600 300nits CCFL TTL 41pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Industrial Application | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 12.1" |
| Resolution: | 800×600 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 246 (W) × 184.5 (H) Mm (A.A) | Viewing Area: | 249.0 (W) × 187.5 (H) Mm (V.A) |
| Outline Dimension: | 280 (W) × 218 (H) Mm | Max. Depth: | 11.5 Mm |
| Weight: | 675g (Typ.) | LC Family: | TN |
| Polarizer: | Transmissive | Brightness: | 300 (Typ.) |
| High Light: | lg display panel,lg lcd display |
||

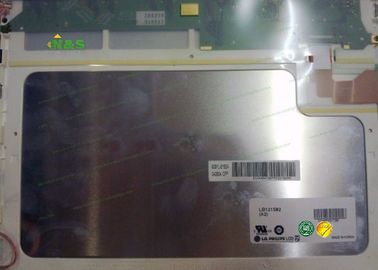

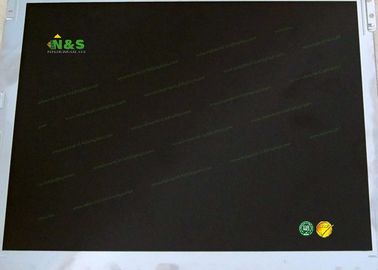

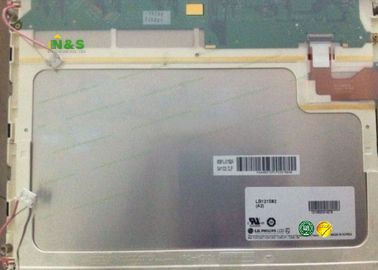

LB121S02-A2 LG LCD Panel 12.1 inch TN LCM 800×600 300nits CCFL TTL 41pins
LB121S02-A2 Detailed Product Description
| Panel Brand : | LG. LCD |
| Panel Model : | LB121S02-A2 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 12.1 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 246×184.5 mm |
| Outline : | 280×218×11.5 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 300 cd/m2 (Typ.) |
| Contrast Ratio : | 200:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 20/35 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 41 pins |
| Input Voltage : | 3.3V (Typ.)(VCC) |
| Panel Size : | 12.1 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 82 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch : | 0.3075×0.3075 mm (H×V) |
| Weight : | 675g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 246×184.5 mm (H×V) |
| Bezel Area : | 249.0×187.5 mm (H×V) |
| Outline Dimension : | 280×218 mm (H×V) |
| Outline Depth : | 11.0±0.5 mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.4) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
