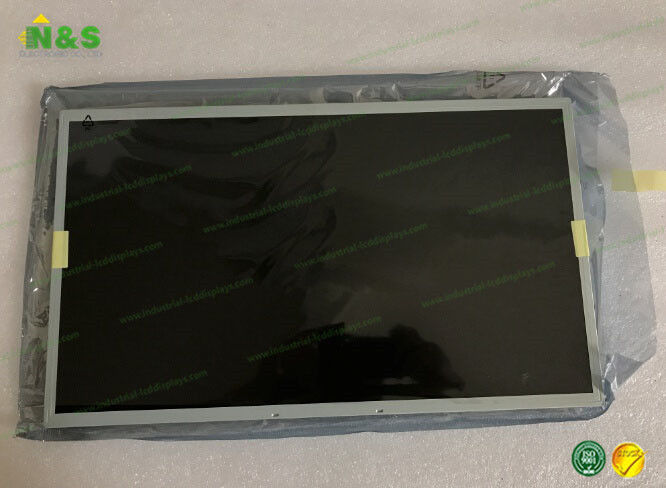

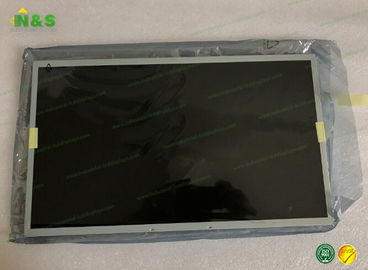

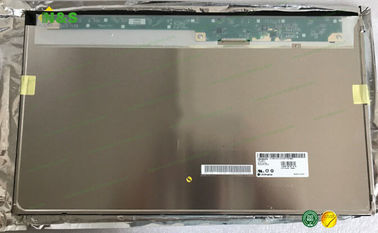

Industrial LG LCD Display Panel LM230WF5-TLD1 23.0 Inch 1920×1080 Resolution

Industrial LG LCD Display Panel LM230WF5-TLD1 23.0 Inch 1920×1080 Resolution
Industrial LG LCD Display Panel LM230WF5-TLD1 23.0 Inch 1920×1080 Resolution Industrial LG LCD Display Panel LM230WF5-TLD1 23.0 Inch 1920×1080 Resolution

Large Image :  Industrial LG LCD Display Panel LM230WF5-TLD1 23.0 Inch 1920×1080 Resolution

Product Details:
Place of Origin: KOREA
Brand Name: LG Display
Certification: ISO9001
Model Number: LM230WF5-TLD1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Paypal, Western Union, MoneyGram
Supply Ability: 100 PCS / DAY

Industrial LG LCD Display Panel LM230WF5-TLD1 23.0 Inch 1920×1080 Resolution

Description
Panel Size: 23.0 Inch Resolution: 1920×1080
Panel Type: A-Si TFT-LCD Outline: 533.2×312×10.7 Mm
Surface: Antiglare, Hard Coating (3H) Contrast Ratio: 1000:1 (Typ.)
High Light:

lg lcd display

,

lg replacement screen

Normally White LG Display LM230WF5-TLD1 23.0 inch, 1920×1080 for Industrial LCD Displays Outline 533.2×312×10.7 mm







LM230WF5-TLD1 Basic Information

Panel Model LM230WF5-TLD1
Panel Brand LG Display
Descrition a-Si TFT-LCD ,23.0 inch, 1920×1080
Panel Type a-Si TFT-LCD
Model Alias LM230WF5 (TL)(D1)
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C


LM230WF5-TLD1 Mechanical Features

Dot Resolution 1920(RGB)×1080 (FHD)
Pixel Configuration RGB Vertical Stripe
Pixel Density 95 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0884×0.2652 mm (H×V)
Pixel Pitch 0.2652×0.2652 mm (H×V)
Weight 1.62/1.70 Kgs (Typ./Max.)
Surface Antiglare, Hard coating (3H)
Active Area 509.184×286.416 mm (H×V)
Bezel Area 513.8×291.0 mm (H×V)
Outline Dimension 533.2×312 mm (H×V)
Outline Depth 8.9/10.7 (Typ./Max.) mm
Holes & Brackets Side mounting holes (2-M3) on left bezel
Landscape or Portrait Landscape type
Touch Panel Without


LM230WF5-TLD1 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 250 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Display Color 16.7M (6-bit + Hi-FRC)
Color Gamut 72% NTSC (CIE1931)
Response Time 1.3/3.7 (Typ.)(Tr/Td)
Viewing Angle 85/85/75/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.33 (Max.)(9 points)
Sunlight Readable N



N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.

6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.

7) Feel free to contact to us if there is any problems during the shipment process.





Panel Model Brand Size Resolution
LP133WP1-TJAA LG Display 13.3" 1440×900
LH550WX1-SH01 LG Display 5.5" 720×1280
LM270WQ1-SDFJ LG Display 27.0" 2560×1440
LH550M01-SH01 LG Display 5.5" 540×960
LH550WF1-SH01 LG Display 5.5" 1080×1920
LD070WX5-SH01 LG Display 7.0" 900×1440
LH350WS1-SH01 LG Display 3.5" 640×960
LH400WV5-SH01 LG Display 4.0" 480×800
LD070WX4-SH01 LG Display 7.0" 800×1280
LH370WV3-SH01 LG Display 3.7" 480×800



FAQ

Q1: What's price?

A1: We provide reasonable price and recommend suitable batteries to our customers.

Q2: What's delivery time?

A2: The delivery time is normally 1-3 working days after payment.

Q3: What's the payment?

A3: We accept T/T, Western Union, MoneyGram, Paypal

Q4: Can we visit your factory?

A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
