Product Details:
|
| Series: | LTD104EA | Keywords Desc.: | TOSHIBA 10.4" TN LCM 1024×768 170nits CCFL LVDS 20pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Laptop | Panel Type: | LTPS TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 10.4" |
| Resolution: | 1024×768 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 210.4 (W) × 157.8 (H) Mm (A.A) | Viewing Area: | 215.0 (W) × 162.5 (H) Mm (V.A) |
| Outline Dimension: | 237.1 (W) × 173.2 (H) Mm | Max. Depth: | 4.9 Mm |
| Weight: | 19020g | LC Family: | TN |
| Polarizer: | Transmissive | Brightness: | 170 (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||
10.4 inch TOSHIBA LTD104EA5R TN LCM 1024×768 170nits CCFL LVDS 20pins
LTD104EA5R General Features
| Panel Brand : | Toshiba Matsushita |
| Panel Model : | LTD104EA5R |
| Panel Type : | LTPS TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 210.4×157.8 mm |
| Outline : | 237.1×173.2×4.9 mm |
| Brightness : | 170 cd/m2 (Typ.) |
| Contrast Ratio : | 100:1 (Min.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 50/50 (Max.)(Tr/Td) |
| Viewing Angle : | 40/40/20/30 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL [8S6P: 8 Serial, 6 Parallel] Without Driver |
| Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 170 cd/m2 (Typ.) |
| Contrast Ratio : | 100 : 1 (Min.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 50/50 (Max.)(Tr/Td) |
| Viewing Angle : | 40/40/20/30 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable : | N |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTD121LA7SG (Z) | TOSHIBA | 12.1" | 1024×768 |
| LTD154LZ1SG | TOSHIBA | 15.4" | 1920×1200 |
| LTD141LA1SG | TOSHIBA | 14.1" | 1024×768 |
| LTD121EA43G | TOSHIBA | 12.1" | 1024×768 |
| LTH15C503-A | TOSHIBA | 15.0" | 1024×768 |
| LTM024D161 | TOSHIBA | 2.4" | 240×320 |
| LTM030DH60 | TOSHIBA | 3.0" | 240×427 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

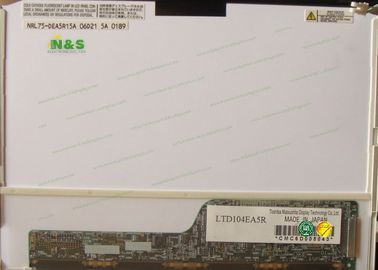

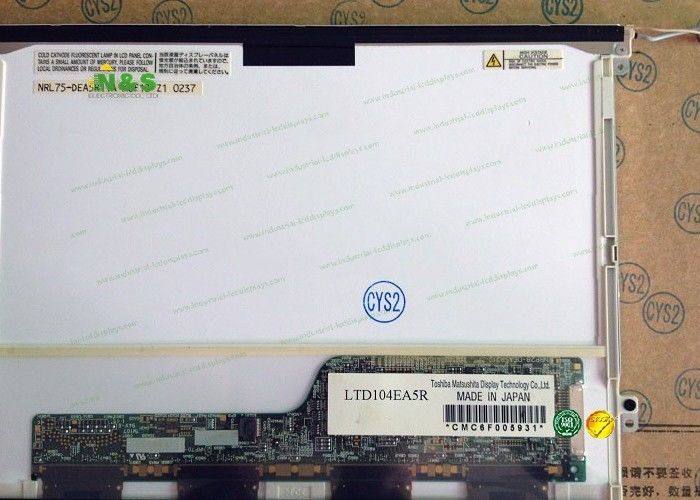

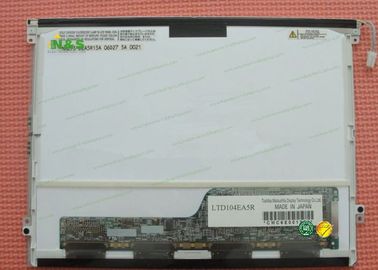

LTD104EA5R Picture
