Product Details:
|
| Series: | LTM10C273 | Keywords Desc.: | TOSHIBA 10.4" TN LCM 800×600 250nits CCFL TTL 31pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Industrial Application | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 10.4" |
| Resolution: | 800×600 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 211.2 (W) × 158.4 (H) Mm (A.A) | Viewing Area: | 216.2 (W) × 163.4 (H) Mm (V.A) |
| Outline Dimension: | 265 (W) × 188.8 (H) Mm | Weight: | 580g (Typ.) |
| LC Family: | TN | Polarizer: | Transmissive |
| Brightness: | 250 (Typ.) | Contrast Ratio: | 250:1 (Typ.) |
| High Light: | industrial touch screen display,industrial lcd panel |
||
LTM10C273 TOSHIBA 10.4 inch TN LCM 800×600 250nits CCFL TTL 31pins
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
LTM10C273 Detailed Product Description
| Panel Brand : | TOSHIBA |
| Panel Model : | LTM10C273 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 211.2×158.4 mm |
| Outline : | 265×188.8 mm |
| Brightness : | 250 cd/m2 (Typ.) |
| Contrast Ratio : | 250:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 50/50 (Max.)(Tr/Td) |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 5.0V (Typ.)(VDD) |
| Panel Size : | 10.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | 580g (Typ.) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 216.2×163.4 mm (H×V) |
| Outline Dimension : | 265×188.8 mm (H×V) |
| Outline Depth : | 12.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTD121LA7SG (Z) | TOSHIBA | 12.1" | 1024×768 |
| LTD154LZ1SG | TOSHIBA | 15.4" | 1920×1200 |
| LTD141LA1SG | TOSHIBA | 14.1" | 1024×768 |
| LTD121EA43G | TOSHIBA | 12.1" | 1024×768 |
| LTH15C503-A | TOSHIBA | 15.0" | 1024×768 |
| LTM024D161 | TOSHIBA | 2.4" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

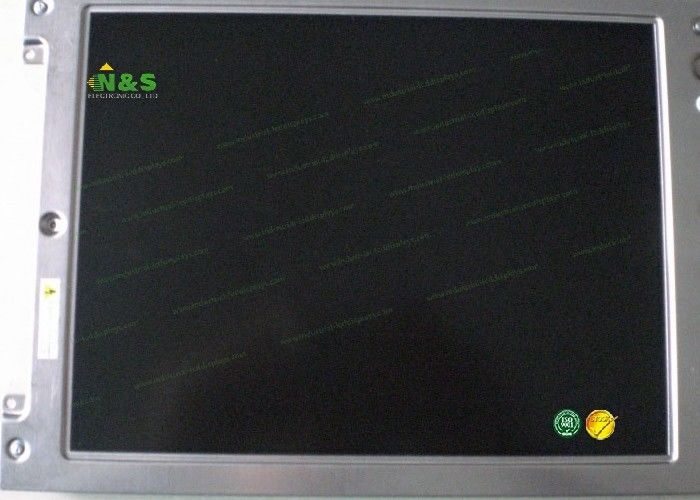

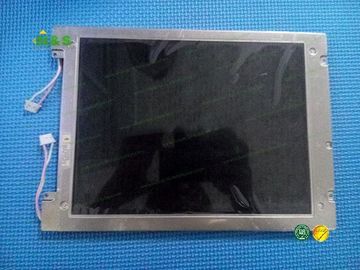

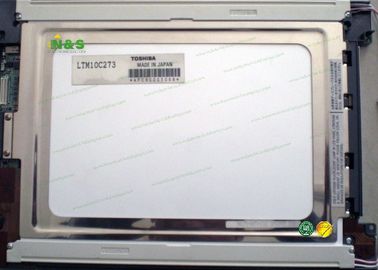

LTM10C273 Picture
