Product Details:
|
| Series: | UG-6028GD*AF | Keywords Desc.: | WiseChip 1.45" 160×128 PM-OLED 262K CPU/RGB/SPI COF |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | PMOLED Graphic Display |
| Panel Type: | PM-OLED | Panel Composition: | OLED |
| Panel Size: | 1.45" | Resolution: | 160×128 |
| Aspect Ratio: | 5:4 (W:H) | Form Factor: | Flat Rectangle Display |
| Active Area: | 28.78 (W) × 23.024 (H) Mm (A.A) | Viewing Area: | 30.78 (W) × 25.024 (H) Mm (V.A) |
| Outline Dimension: | 35.8 (W) × 30.8 (H) Mm | Max. Depth: | 1.7 Mm |
| Weight: | 3.60g (Typ.) | Brightness: | 100 (Typ.) |
| Gray Depth: | 6-bit | Colors Amount: | 262K |
| Driving Duty: | 1/128 | Controller: | SEPS525 |
| High Light: | industrial touch screen display,industrial lcd panel |
||
WiseChip 1.45 inch 160×128 PM-OLED 262K CPU/RGB/SPI COF UG-6028GDEAF01
UG-6028GDEAF01 Main Parameters
| Panel Brand : | Univision |
| Panel Model : | UG-6028GDEAF01 |
| Panel Type : | PM-OLED , OLED |
| Panel Size : | 1.45 inch |
| Resolution : | 160(RGB)×128 |
| Active Area : | 28.78×23.024 mm |
| Outline : | 35.8×30.8×1.7 mm |
| Brightness : | 100 cd/m2 (Typ.) |
| Contrast Ratio : | 2000 : 1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Viewing Angle : | 80/80/80/80 (Min.) (L/R/U/D) |
| Driver IC : | COF Built-in SEPS525 |
| Signal Interface : | 8/9-bit 8080 parallel, 6-bit RGB, 4-wire SPI , 35 pins |
| Panel Size : | 1.45 inch |
| Dot Resolution : | 160(RGB)×128 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 141 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.06×0.18 mm (H×V) |
| Pixel Pitch : | 0.18×0.18 mm (H×V) |
| Weight : | 3.60g (Typ.) |
| Active Area : | 28.78×23.024 mm (H×V) |
| Bezel Area : | 30.78×25.024 mm (H×V) |
| Outline Dimension : | 35.8×30.8 mm (H×V) |
| Outline Depth : | 1.6±0.1 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Company Strength in LCD Screen Sourcing:
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
| ED060SCT | E Ink | 6.0" | 600×800 |
| ET043OC1 | E Ink | 4.4" | 360×640 |
| EN133UT1 | E Ink | 13.3" | 1600×1200 |
| ED047TC1 | E Ink | 4.7" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

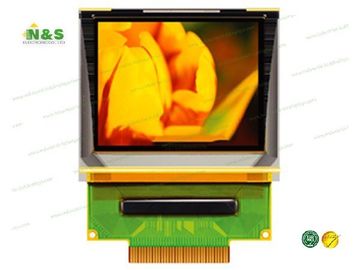

UG-6028GDEAF01 Picture
