Product Details:
|
| Series: | G121SN01 | Keywords Desc.: | AUO 12.1" TN LCM 800×600 400nits CCFL LVDS 20pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Industrial Application | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 12.1" |
| Resolution: | 800×600 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 246 (W) × 184.5 (H) Mm (A.A) | Viewing Area: | 249.05 (W) × 188.3 (H) Mm (V.A) |
| Outline Dimension: | 279 (W) × 209 (H) Mm | Max. Depth: | 11 Mm |
| Weight: | 660g (Typ.) | LC Family: | TN |
| Polarizer: | Transmissive | Brightness: | 400 (Typ.) |
| Highlight: | auo lcd screen,auo lcd display |
||
G121SN01 V0 AUO Industrial LCD Displays / Flat Rectangle TFT LCD Module
| Panel Brand : | AUO |
| Panel Model : | G121SN01 V0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 12.1 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 246×184.5 mm |
| Outline : | 279×209×11 mm |
| Surface : | Antiglare |
| Brightness : | 400 cd/m2 (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/60/50 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 12.1 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 82 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch : | 0.3075×0.3075 mm (H×V) |
| Weight : | 660g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 246×184.5 mm (H×V) |
| Bezel Area : | 249.05×188.3 mm (H×V) |
| Outline Dimension : | 279×209 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (6-Φ3.4, 1-R1.7) on left and right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

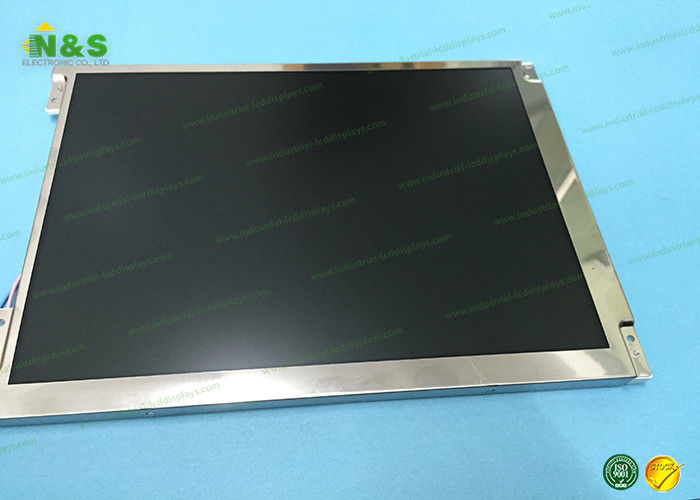

G121SN01 V0 Picture
