Product Details:
|
| Series: | TX14D12 | Keywords Desc.: | KOE 5.7" TN LCM 320×240 480nits CCFL TTL 40pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Resistive Touch LCD,Transmissive LCD |
| Application: | Industrial Application | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 5.7" |
| Resolution: | 320×240 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 115.2 (W) × 86.4 (H) Mm (A.A) | Viewing Area: | 119.4 (W) × 90.6 (H) Mm (V.A) |
| Outline Dimension: | 131 (W) × 102.2 (H) Mm | Weight: | 200g (Typ.) |
| LC Family: | TN | Polarizer: | Transmissive |
| Brightness: | 480 (Typ.) | Contrast Ratio: | 350:1 (Max.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||
5.7 inch KOE TX14D12VM1CAB TN LCM 320×240 480nits CCFL TTL 40pins
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
TX14D12VM1CAB Main Parameters
| Panel Brand : | HITACHI |
| Panel Model : | TX14D12VM1CAB |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.7 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 115.2×86.4 mm |
| Outline : | 131×102.2 mm |
| Surface : | Antiglare |
| Brightness : | 480 cd/m2 (Typ.) |
| Contrast Ratio : | 350:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 45 (Typ.)(Tr+Td) |
| Viewing Angle : | 65/65/70/50 (Typ.)(CR≥5) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | CMOS (1 ch, 6-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.)(VDD) |
| Panel Size : | 5.7 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.120×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Weight : | 200g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 119.4×90.6 mm (H×V) |
| Outline Dimension : | 131×102.2 mm (H×V) |
| Outline Depth : | 12.4±0.5 mm |
| Holes & Brackets : | Rear mounting holes (4-Ф2.4) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| SP24V01L0ALZZ | KOE | 9.4" | 640×480 |
| SP14N02L6ALCZ | KOE | 5.1" | 240×128 |
| SP12N01L6ALCZ | KOE | 4.8" | 256×64 |
| SP24V001-A | KOE | 9.4" | 640×480 |
| SP10Q010-T | KOE | 3.8" | 320×240 |
| SP10Q010-ZZA | KOE | 3.8" | 320×240 |
| SP10Q010-TZA | KOE | 3.8" | 320×240 |
| SP10Q010 | KOE | 3.8" | 320×240 |
| ST12Q01L6ALZZ | KOE | 4.7" | 320×240 |
| SP14Q011-T | KOE | 5.7" | 320×240 |

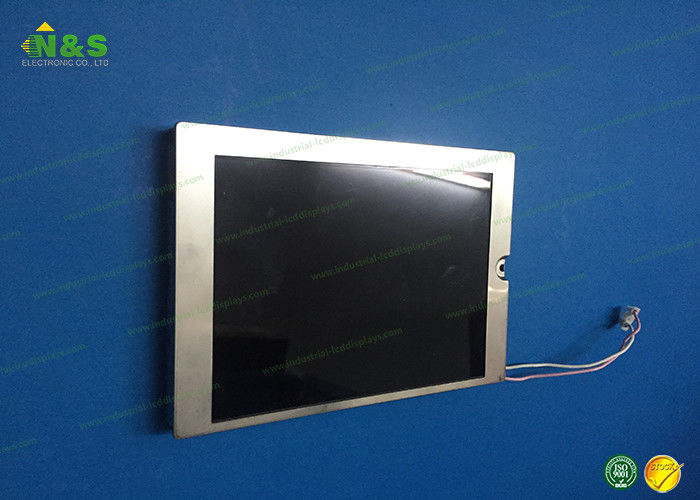

TX14D12VM1CAB Picture
