Product Details:
|
| Series: | SP14Q006 | Keywords Desc.: | KOE 5.7" 320×240 FSTN-LCD Black/White Mode Transmissive WLED Parallel |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | FSTN-LCD Graphic Module |
| Application: | Industrial Application | Panel Type: | FSTN-LCD |
| Panel Composition: | LCM | Panel Size: | 5.7" |
| Resolution: | 320×240 | Form Factor: | Flat Rectangle Display |
| Active Area: | 115.185 (W) × 86.385 (H) Mm (A.A) | Viewing Area: | 122.0 (W) × 92.0 (H) Mm (V.A) |
| Outline Dimension: | 167 (W) × 109 (H) Mm | Max. Depth: | 10 Mm |
| Polarizer: | Transmissive | Color Mode: | Black/White Mode |
| Viewing Direction: | 6 O'clock | Colors Amount: | Monochrome |
| Driving Duty: | 1/240 | Backlight Type: | WLED |
| High Light: | industrial touch screen display,industrial lcd screen |
||

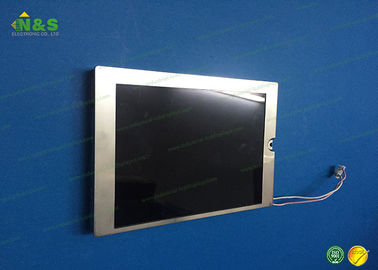

KOE SP14Q006 5.7 inch 320×240 FSTN-LCD Black/White mode Transmissive WLED Parallel Data 14pins
| Panel Brand : | KOE |
| Panel Model : | SP14Q006 |
| Panel Type : | FSTN-LCD , LCM |
| Panel Size : | 5.7 inch |
| Resolution : | 320×240 , QVGA |
| Display Mode : | STN, Black/White mode, Transmissive |
| Active Area : | 115.185×86.385 mm |
| Outline : | 167×109×10 mm |
| Surface : | Antiglare |
| Brightness : | 150 cd/m2 (Typ.) |
| Contrast Ratio : | 25:1 (Typ.) |
| Display Colors : | Monochrome |
| Response Time : | 336/148 (Typ.)(Tr/Td) |
| Frequency : | 75Hz |
| Lamp Type : | WLED |
| Signal Interface : | Parallel Data (4-bit) , 14 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VDD) |
| Panel Size : | 5.7 inch |
| Dot Resolution : | 320×240 (QVGA) |
| Pixel Configuration : | Rectangle |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.360×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Surface : | Antiglare |
| Active Area : | 115.185×86.385 mm (H×V) |
| Bezel Area : | 122.0×92.0 mm (H×V) |
| Outline Dimension : | 167×109 mm (H×V) |
| Outline Depth : | 8.5/10.0 (Typ.Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LMG9980ZWCC | KOE | 12.1" | 800×600 |
| SX19V004-ZZA | KOE | 7.5" | 800×600 |
| SX19V010-ZZA | KOE | 7.5" | 640×480 |
| SX19V010 | KOE | 7.5" | 640×480 |
| SX31S009 | KOE | 12.1" | 800×600 |
| SX31S008 | KOE | 12.1" | 800×600 |
| SX31S007 | KOE | 12.1" | 800×600 |
| SX31S004 | KOE | 12.1" | 800×600 |
| SX31S003 | KOE | 12.1" | 800×600 |
| SX31S002 | KOE | 12.1" | 800×600 |
