Product Details:
|
| Series: | NL10276BC20-04 | Product Class: | Graphic LCD Display |
|---|---|---|---|
| Product Tags: | Color TFT-LCD,Transmissive LCD | Application: | Industrial Application |
| Panel Composition: | LCM | Panel Size: | 10.4" |
| Resolution: | 1024×768 | Max. Depth: | 11.5 Mm |
| Colors Amount: | 262K | Brand: | None,BEIXIOU |
| Product Type: | Tablet LCD,Tablet Touch Panel,Panel LCD Combo | Screen Size: | <7 Inch,7~10 Inch,10~13 Inch,>13 Inch |
| Screen Type: | Capacitive Screen,Resistance Screen,Piezoelectric,Eletromagnetic | ||
| High Light: | industrial touch screen display,industrial lcd screen |
||

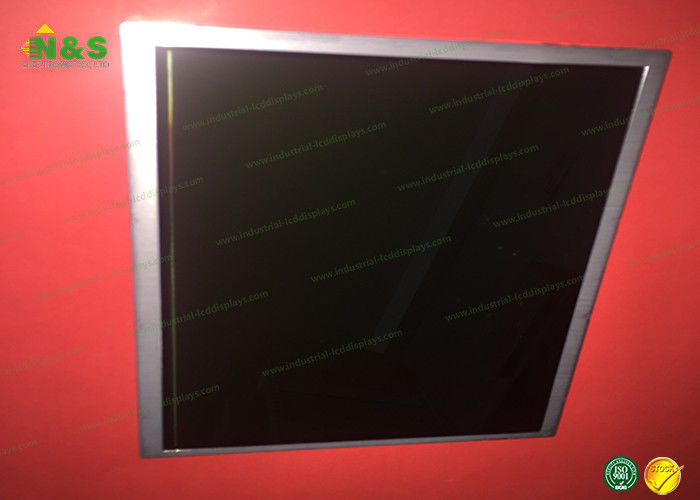

| Panel Brand : | NEC |
| Panel Model : | NL10276BC20-04 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 210.4×157.8 mm |
| Outline : | 243×185.1×11.5 mm |
| Surface : | Clear, Hard coating (3H) |
| Brightness : | 300 cd/m2 (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 15/40 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/45/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 10.4 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 123 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch : | 0.2055×0.2055 mm (H×V) |
| Weight : | 530/550g (Typ./Max.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 210.4×157.8 mm (H×V) |
| Bezel Area : | 215.4×161.8 mm (H×V) |
| Outline Dimension : | 243×185.1 mm (H×V) |
| Outline Depth : | 11.0±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
