Product Details:
|
| Series: | NL2432HC22-41 | Keywords Desc.: | NLT 3.5" TN LCM 240×320 200nits WLED TTL 45pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Resistive Touch LCD,Transflective LCD,Sunlight Readable |
| Application: | Handheld Product,PDA | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 3.5" |
| Resolution: | 240×320 | Aspect Ratio: | 3:4 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Portrait Type |
| Active Area: | 53.64 (W) × 71.52 (H) Mm (A.A) | Viewing Area: | 57.64 (W) × 76.52 (H) Mm (V.A) |
| Outline Dimension: | 63.5 (W) × 85 (H) Mm | Max. Depth: | 5.7 Mm |
| Weight: | 43.0/45.0g (Typ./Max.) | LC Family: | TN |
| Polarizer: | Transflective | Brightness: | 200 (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||
NL2432HC22-41 3.5 inch TN LCM 240×320 200nits WLED TTL 45pins
NL2432HC22-41 General Features
| Panel Brand : | NEC |
| Panel Model : | NL2432HC22-41B |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 240(RGB)×320 , QVGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 53.64×71.52 mm |
| Outline : | 63.5×85×5.7 mm |
| Surface : | Clear, Hard coating (3H) |
| Brightness : | 200 cd/m2 (Typ.) |
| Contrast Ratio : | 150:1 (Typ.)(Transmissive) 15:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 7/23 (Typ.)(Tr/Td) |
| Viewing Angle : | 30/30/30/35 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6S1P WLED |
| Signal Interface : | CMOS (1 ch, 6-bit) + SPI , 45 pins |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| Panel Size : | 3.5 inch |
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 113 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch : | 0.2235×0.2235 mm (H×V) |
| Weight : | 43.0/45.0g (Typ./Max.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 53.64×71.52 mm (H×V) |
| Bezel Area : | 57.64×76.52 mm (H×V) |
| Outline Dimension : | 63.5×85 mm (H×V) |
| Outline Depth : | 4.2/5.7 (Typ./Max.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |

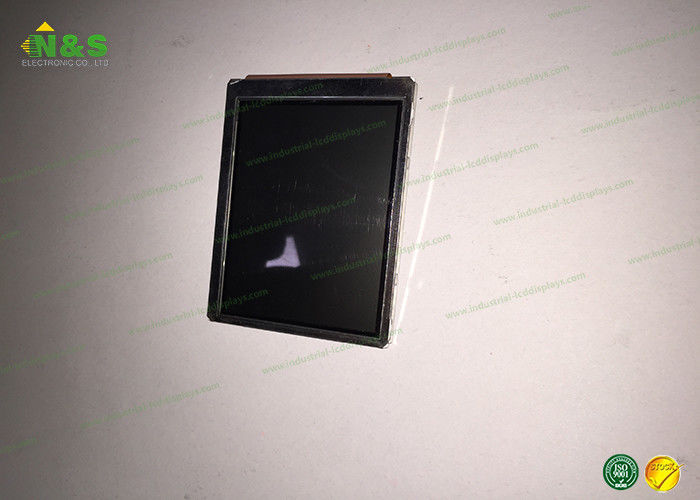

NL2432HC22-41 Picture
