Product Details:
|
| Series: | NL3224AC35-01 | Keywords Desc.: | NLT 5.5" TN LCM 320×240 220nits CCFL Analog 30pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Wide Temperature LCD,Transmissive LCD |
| Application: | Automotive Display | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 5.5" |
| Resolution: | 320×240 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 111.36 (W) × 83.52 (H) Mm (A.A) | Outline Dimension: | 134 (W) × 110 (H) Mm |
| Weight: | 315/330g (Typ./Max.) | LC Family: | TN |
| Polarizer: | Transmissive | Brightness: | 220 (Typ.) |
| Contrast Ratio: | 85:1 (Typ.) | Viewing Angle: | 45/45/30/15 (Typ.)(CR10) (L/R/U/D) |
| High Light: | nec tft lcd,nec lcd screen |
||
NL3224AC35-01 5.5 inch TN LCM 320×240 220nits CCFL Analog 30pins
NL3224AC35-01 Quick Details:
| Panel Brand : | NEC |
| Panel Model : | NL3224AC35-01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.5 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 111.36×83.52 mm |
| Outline : | 134×110 mm |
| Surface : | Antiglare |
| Brightness : | 220 cd/m2 (Typ.) |
| Contrast Ratio : | 85:1 (Typ.) |
| Display Colors : | Full color , CIE1931 50% |
| Response Time : | 16/44 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/30/15 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | Analog RGB , 30 pins |
| Input Voltage : | 9.5V (Typ.) |
| Panel Size : | 5.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 72 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.116×0.348 mm (H×V) |
| Pixel Pitch : | 0.348×0.348 mm (H×V) |
| Weight : | 315/330g (Typ./Max.) |
| Surface : | Antiglare |
| Active Area : | 111.36×83.52 mm (H×V) |
| Outline Dimension : | 134×110 mm (H×V) |
| Outline Depth : | 23.0 (Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" | 758×1024 |
| SMA058HRG1 | E Ink | 5.8" | 600×448 |
| SMA058H7G1 | E Ink | 5.8" | 600×448 |
| ED035OC1 | E Ink | 3.5" | 360×600 |

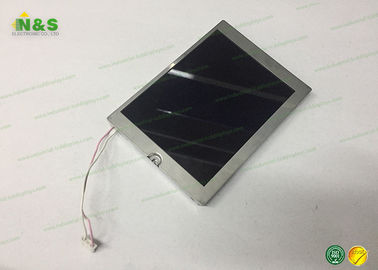

NL3224AC35-01 Picture
