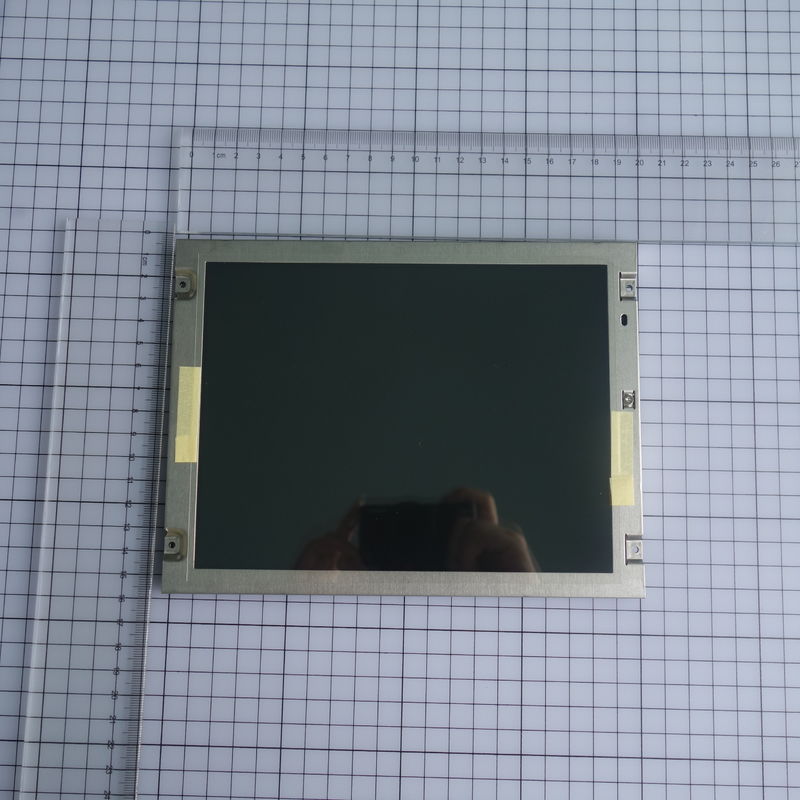

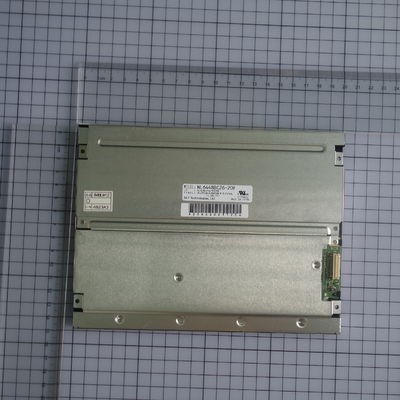

6 Bit 640×480 8.4 Inch NL6448BC26-20F NEC LCD Panel

6 Bit 640×480 8.4 Inch NL6448BC26-20F NEC LCD Panel
6 Bit 640×480 8.4 Inch NL6448BC26-20F NEC LCD Panel 6 Bit 640×480 8.4 Inch NL6448BC26-20F NEC LCD Panel

Large Image :  6 Bit 640×480 8.4 Inch NL6448BC26-20F NEC LCD Panel

Product Details:
Place of Origin: Korea
Brand Name: NEC
Model Number: NL6448BC26-20F
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

6 Bit 640×480 8.4 Inch NL6448BC26-20F NEC LCD Panel

Description
Operating Temp.: -20 ~ 70 °C Storage Temp.: -30 ~ 80 °C
Vibration Level: 2.0G (19.6 M/s²) Contrast Ratio: 1000:1 (Typ.) (TM)
Brightness: 800 Cd/m² (Typ.) Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Display Mode: TN, Normally White, Transmissive Signal Interface: CMOS (1 Ch, 6-bit) , 31 Pins Connector
High Light:

NL6448BC26-20F

,

NL6448BC26-20F LCD Panel

,

6Bit NEC LCD Panel

6 Bit 640×480 8.4 Inch NL6448BC26-20F NEC LCD Panel



Description Of NEC LCD Panel

NL6448BC26-20F is a 8.4 inch diagonal a-Si TFT-LCD display screen product from NEC, with a built-in WLED backlight, without backlight driver, without touch screen. On the basis of latest version datasheet 2nd edition which was released out on 3 1 2011, NL6448BC26-20F supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe.



NEC NL6448BC26-20F Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
800 (Typ.) 80/80/80/80 (Typ.)(CR≥10) 3/15 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
- TN, Normally White, Transmissive 1000 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 262K (6-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
40% 56% 42%
DCI-P3 Coverage Rec.2020 Coverage Remarks
42% 30% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.25/1.40 (Typ./Max.)(5 points) 6 Bit 640×480 8.4 Inch NL6448BC26-20F NEC LCD Panel 0
Performance : 3D Tech Sunlight Visibility Reflectance
- Sunlight Readable -

NEC NL6448BC26-20F Mechanical Features

Panel Size : 8.4"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
640(RGB)×480 [VGA] RGB Vertical Stripe 0.267×0.267 [95PPI] 0.089×0.267
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
170.88(H) × 128.16(V) 174.0(H) × 131.4(V) 200(H) × 152(V) 8.2±0.5 mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape / Portrait 4:3 (H:V)
Mounting : Face mounting holes (4-Ф2.8) on left, right bezel
Other Detail : Weight Panel Cover Treatment
330/350g (Typ./Max.) - Clear, Hard coating (3H)



Application Of NEC LCD Panel NL6448BC26-20F

1. Military Display

2. Commercial Display

3. Intelligent Display

4. Tablet PC





Shipment for the LCD Display Panels:

1. Safe & Professional package for our LCD panels.

2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. All our LCD panel will be tested pcs by pcs before been shipped out.



FAQ

Q1: What's the quality of your Hard Disk?

A: Various brands for hard disk etc. We are available to meet your different requirements.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q4: How long is the lead time?

A: The lead time is about 2-3 working days after receipt of payment.

Q5: Do you accept sample order?

A:Yes, sample order is welcome.

Q6: How can I get the quotation?

A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.


6 Bit 640×480 8.4 Inch NL6448BC26-20F NEC LCD Panel 1
