Product Details:
|
| Series: | NL4864HL11-01 | Keywords Desc.: | NLT 3.5" TN LCM 480×640 200nits WLED TTL 45pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Resistive Touch LCD,Transflective LCD,Sunlight Readable |
| Application: | Handheld Product,PDA | Panel Type: | LTPS TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 3.5" |
| Resolution: | 480×640 | Aspect Ratio: | 3:4 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Portrait Type |
| Active Area: | 53.28 (W) × 71.04 (H) Mm (A.A) | Viewing Area: | 55.65 (W) × 73.52 (H) Mm (V.A) |
| Outline Dimension: | 63.5 (W) × 85 (H) Mm | Weight: | 43.0g (Typ.) |
| LC Family: | TN | Polarizer: | Transflective |
| Brightness: | 200 (Typ.) | Contrast Ratio: | 180:1 (Typ.) |
| High Light: | nec lcd touch screen,nec lcd screen |
||
NL4864HL11-01 3.5 inch TN LCM 480×640 200nits WLED TTL 45pins
NL4864HL11-01 Main Parameters
| Panel Brand : | NEC |
| Panel Model : | NL4864HL11-01B |
| Panel Type : | LTPS TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 480(RGB)×640 , VGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 53.28×71.04 mm |
| Outline : | 63.5×85 mm |
| Surface : | Clear, Hard coating (3H) |
| Brightness : | 200 cd/m2 (Typ.) |
| Contrast Ratio : | 180:1 (Typ.)(Transmissive) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Viewing Angle : | 30/30/30/35 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | CMOS (1 ch, 6-bit) , 45 pins |
| Input Voltage : | 3.0/3.0V (Typ.)(VCC/VCCIO) |
| Panel Size : | 3.5 inch |
| Dot Resolution : | 480(RGB)×640 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 228 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.037×0.111 mm (H×V) |
| Pixel Pitch : | 0.111×0.111 mm (H×V) |
| Weight : | 43.0g (Typ.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 53.28×71.04 mm (H×V) |
| Bezel Area : | 55.65×73.52 mm (H×V) |
| Outline Dimension : | 63.5×85 mm (H×V) |
| Outline Depth : | 4.2±0.2 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED097TC1 | E Ink | 9.7" | 1200×825 |
| ET047TC1 | E Ink | 4.7" | 540×960 |
| ET040TC1 | E Ink | 4.0" | 480×720 |
| ED043WH1 | E Ink | 4.3" | 480×800 |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" | 758×1024 |

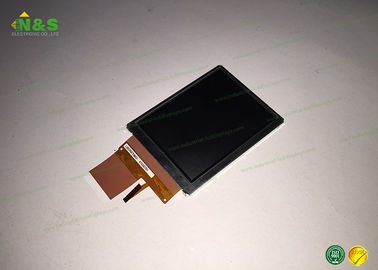

NL4864HL11-01 Picture
