Product Details:
|
| Series: | NL4864HL11-02 | Keywords Desc.: | NLT 3.5" TN LCM 480×640 220nits WLED TTL |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transflective LCD,Sunlight Readable LCD |
| Application: | Handheld Product,PDA,Portable Navigation | Panel Type: | LTPS TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 3.5" |
| Resolution: | 480×640 | Aspect Ratio: | 3:4 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Portrait Type |
| Active Area: | 53.28 (W) × 71.04 (H) Mm (A.A) | Outline Dimension: | 63.5 (W) × 85 (H) Mm |
| Weight: | 25.0/28.0g (Typ./Max.) | LC Family: | TN |
| Polarizer: | Transflective | Brightness: | 220 (Typ.) |
| Contrast Ratio: | 180:1 (Typ.) | Viewing Angle: | 30/30/30/35 (Typ.)(CR10) (L/R/U/D) |
| High Light: | nec lcd touch screen,nec tft lcd |
||
NL4864HL11-02 3.5 inch TN LCM 480×640 220nits WLED TTL
NL4864HL11-02 Quick Details:
| Panel Brand : | NEC |
| Panel Model : | NL4864HL11-02A |
| Panel Type : | LTPS TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 480(RGB)×640 , VGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 53.28×71.04 mm |
| Outline : | 63.5×85 mm |
| Surface : | Clear, Hard coating (3H) |
| Brightness : | 220 cd/m2 (Typ.) |
| Contrast Ratio : | 180:1 (Typ.)(Transmissive) 15:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 7/23 (Typ.)(Tr/Td) |
| Viewing Angle : | 30/30/30/35 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | CMOS (1 ch, 6-bit) + SPI |
| Input Voltage : | 3.0/3.0V (Typ.)(VCC/VCCIO) |
| Panel Size : | 3.5 inch |
| Dot Resolution : | 480(RGB)×640 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 228 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.037×0.111 mm (H×V) |
| Pixel Pitch : | 0.111×0.111 mm (H×V) |
| Weight : | 25.0/28.0g (Typ./Max.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 53.28×71.04 mm (H×V) |
| Outline Dimension : | 63.5×85 mm (H×V) |
| Outline Depth : | 3.0±0.2 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED097TC1 | E Ink | 9.7" | 1200×825 |
| ET047TC1 | E Ink | 4.7" | 540×960 |
| ET040TC1 | E Ink | 4.0" | 480×720 |
| ED043WH1 | E Ink | 4.3" | 480×800 |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" |
758×1024 |

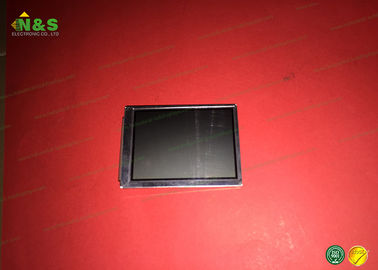

NL4864HL11-02 Picture
