Product Details:
|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 147.84×55.44 Mm |
|---|---|---|---|
| Outline: | 174.2×73.4 Mm | Surface: | Glare (Haze 0%) |
| Brightness: | 350 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||
6.2 inch TCG062HV1AE-G00 Kyocera with 147.84×55.44 mm Active Area
TCG062HV1AE-G00 Quick Details:
| Panel Brand : | Kyocera |
| Panel Model : | TCG062HV1AE-G00 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 6.2 inch |
| Resolution : | 640(RGB)×240 , HVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 147.84×55.44 mm |
| Outline : | 174.2×73.4 mm |
| Surface : | Glare (Haze 0%) |
| Brightness : | 350 cd/m2 (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/85/50 (Typ.)(CR≥5) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 33 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 6.2 inch |
| Dot Resolution : | 640(RGB)×240 (HVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 109 PPI |
| Aspect Ratio : | 8:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.077×0.231 mm (H×V) |
| Pixel Pitch : | 0.231×0.231 mm (H×V) |
| Weight : | 170g |
| Surface : | Glare (Haze 0%) |
| Active Area : | 147.84×55.44 mm (H×V) |
| Bezel Area : | 152.4×60.0 mm (H×V) |
| Outline Dimension : | 174.2×73.4 mm (H×V) |
| Outline Depth : | 12.2 mm |
| Holes & Brackets : | Rear mounting holes (4-Ф2.5) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AIN | Kyocera | 2.8" | 128×64 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

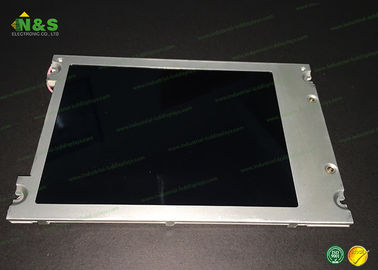

TCG062HV1AE-G00 Picture
