Product Details:
|
| Panel Size: | 5.7 Inch | Resolution: | 320(RGB)×240 , QVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 115.2×86.4 Mm |
| High Light: | industrial touch screen display,industrial lcd screen |
||
Kyocera TCG057QV1AP-G00 LCD Displays 5.7 inch with 115.2×86.4 mm for Industrial Application
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
TCG057QV1AP-G00 Main Parameters
| Panel Brand : | Kyocera |
| Panel Model : | TCG057QV1AP-G00 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.7 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 115.2×86.4 mm |
| Outline : | 144×104.8×13.5 mm |
| Panel Size : | 5.7 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.120×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Weight : | 220g |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 119.8×91.0 mm (H×V) |
| Outline Dimension : | 144×104.8 mm (H×V) |
| Outline Depth : | 13.0±0.5 mm |
| Holes & Brackets : | Rear mounting holes (4-Φ2.6) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AIN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AGN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-ACN | Kyocera | 2.8" | 128×64 |
| F-55471GNFJ-SLW-AMN | Kyocera | 5.2" | 240×64 |
| F-55471GNBJ-LW-ANN | Kyocera | 5.2" | 240×64 |
| F-51553GNBJ-LW-AGN | Kyocera | 2.8" | 128×64 |
| F-51553GNBJ-LW-AFN | Kyocera | 2.8" | 128×64 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

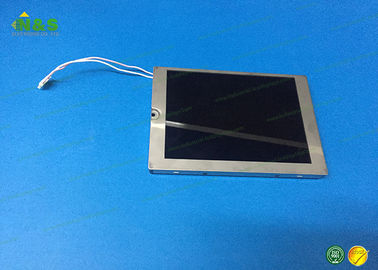

TCG057QV1AP-G00 Picture
