Product Details:
|
| High Light: | industrial touch screen display,industrial lcd panel |
||
|---|---|---|---|
TCG057QV1AC-G11 Kyocera LCD Displays 5.7 inch with 115.2×86.4 mm for Industrial Application
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
TCG057QV1AC-G11 Main Parameters
| Panel Brand : | Kyocera |
| Panel Model : | TCG057QV1AC-G11 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.7 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 115.2×86.4 mm |
| Outline : | 144×104.8×13.5 mm |
| Surface : | Glare (Haze 0%) |
| Brightness : | 400 cd/m2 (Typ.) |
| Contrast Ratio : | 450:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/70/70 (Typ.)(CR≥5) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 33 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 5.7 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.120×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Weight : | 220g (Typ.) |
| Surface : | Glare (Haze 0%) |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 117.2×88.4 mm (H×V) |
| Outline Dimension : | 144×104.8 mm (H×V) |
| Outline Depth : | 13.0±0.5 mm |
| Holes & Brackets : | Rear mounting holes (4-Φ2.6) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AIN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AGN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-ACN | Kyocera | 2.8" | 128×64 |
| F-55471GNFJ-SLW-AMN | Kyocera | 5.2" | 240×64 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

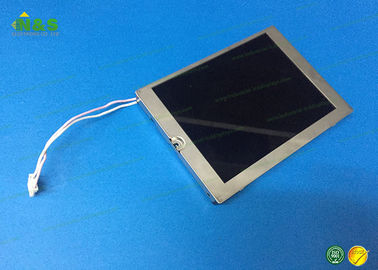

TCG057QV1AC-G11 Picture
