Product Details:
|
Active Area: | 48×35.685 Mm | Display Colors: | 262K |
---|---|---|---|
Brightness: | 250 Cd/m² (Typ.) | Signal Interface: | Serial RGB (8-bit) + SPI , 40 Pins |
High Light: | industrial lcd screen,industrial lcd panel |

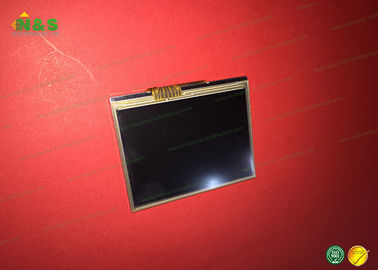

2.4 inch PVI PD024OX4 with 48×35.685 mm Active Area Brightness 250 cd/m² (Typ.)
PD024OX4 Characteristic
Panel Brand : | PVI |
Panel Model : | PD024OX4 |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 2.4 inch |
Resolution : | 480×234 |
Display Mode : | TN, Normally White, Transmissive |
Active Area : | 48×35.685 mm |
Outline : | 55.2×47.55 mm |
Surface : | Antiglare |
Brightness : | 250 cd/m² (Typ.) |
Contrast Ratio : | 400:1 (Typ.) |
Display Colors : | 262K |
Response Time : | 6/15 (Typ.)(Tr/Td) |
Viewing Angle : | 50/50/15/35 (Typ.)(CR≥10) (L/R/U/D) |
Lamp Type : | 3S1P WLED Without Driver |
Signal Interface : | Serial RGB (8-bit) + SPI , 40 pins |
Input Voltage : | 3.3/3.3/15/-8V (Typ.)(VCC/PVDD/VGH/VGL) |
PD024OX4 General Features
Panel Size : | 2.4 inch |
Dot Resolution : | 480×234 |
Pixel Configuration : | RGB Delta |
Pixel Density : | 120 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.1000×0.1525 mm (H×V) |
Weight : | 12.0±1.5g |
Surface : | Antiglare |
Active Area : | 48×35.685 mm (H×V) |
Outline Dimension : | 55.2×47.55 mm (H×V) |
Outline Depth : | 2.9 (Typ.) mm |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
