Product Details:
|
| Panel Brand: | PVI | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Active Area: | 71.6×52.65 Mm | Outline: | 84.03×65.24×3.73 Mm |
| Brightness: | 250 Cd/m² (Typ.) | Contrast Ratio: | 400:1 (Typ.) |
| High Light: | nec tft lcd,nec lcd screen |
||
PVI PD035OX1 LCD Panel Normally White 3.5 inch with 84.03×65.24×3.73 mm Outline
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
PD035OX1 Detailed Product Description
| Panel Brand : | PVI |
| Panel Model : | PD035OX1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 320(RGB)×234 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 71.6×52.65 mm |
| Outline : | 84.03×65.24×3.73 mm |
| Surface : | Antiglare |
| Brightness : | 250 cd/m2 (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Signal Interface : | Digital RGB (8/24-bit), CCIR601/656 , 60 pins |
| Input Voltage : | 3.3/3.3/5.0/15/-15V (Typ.)(VCC/VDD1/VDD2/VGH/VEE) |
| Panel Size : | 3.5 inch |
| Dot Resolution : | 320(RGB)×234 |
| Pixel Configuration : | RGB Delta |
| Pixel Density : | 113 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0746×0.225 mm (H×V) |
| Weight : | 42.0±5.0g |
| Surface : | Antiglare |
| Active Area : | 71.6×52.65 mm (H×V) |
| Bezel Area : | 74.6×55.65 mm (H×V) |
| Outline Dimension : | 84.03×65.24 mm (H×V) |
| Outline Depth : | 3.43±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| EK014BS012 | PDI | 1.44" | 128×96 |
| EK014BS011 | PDI | 1.44" | 128×96 |
| EG020BS012 | PDI | 2.0" | 200×96 |
| EG020BS011 | PDI | 2.0" | 200×96 |
| EG020AS013 | PDI | 2.0" | 200×96 |
| EG020AS012 | PDI | 2.0" | 200×96 |
| EM027BS014 | PDI | 2.7" | 264×176 |

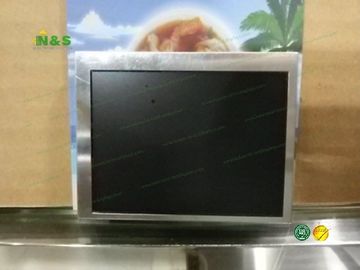

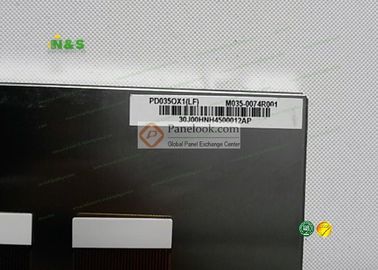

PD035OX1 Picture
