Product Details:
|
| Panel Size: | 5.7 Inch | Brightness: | 370 Cd/m² (Typ.) |
|---|---|---|---|
| Lamp Type: | 1 Pcs CCFL | Panel Type: | A-Si TFT-LCD , LCM |
| High Light: | industrial touch screen display,industrial lcd panel |
||

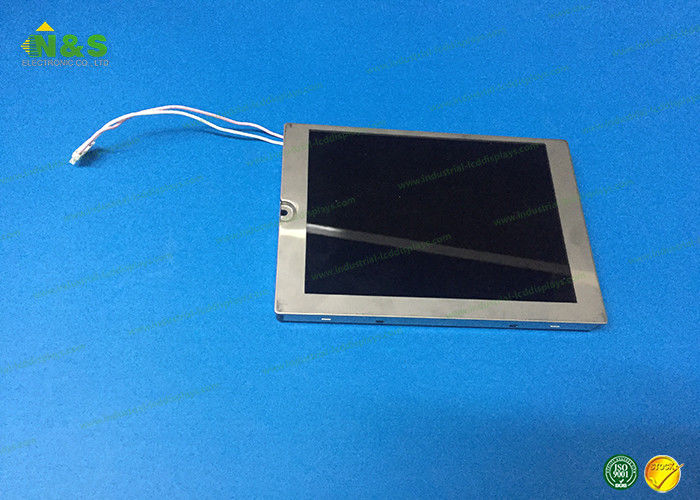

Kyocera TCG057QV1AQ-G00 Normally White with 115.2×86.4 mm Active Area 262K (6-bit)
TCG057QV1AQ-G00 Characteristic
| Panel Brand : | Kyocera |
| Panel Model : | TCG057QV1AQ-G00 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.7 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White |
| Active Area : | 115.2×86.4 mm |
| Outline : | 144×104.8 mm |
| Brightness : | 370 cd/m² (Typ.) |
| Contrast Ratio : | 450 : 1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Kyocera TCG057QV1AQ-G00 Mechanical Features
| Panel Size : | 5.7 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.120×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Active Area : | 115.2×86.4 mm (H×V) |
| Outline Dimension : | 144×104.8 mm (H×V) |
| Landscape or Portrait : | Landscape type |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
