NL6448BC33-59D Industrial Application flat panel lcd display 60Hz Frequency

NL6448BC33-59D Industrial Application flat panel lcd display 60Hz Frequency
NL6448BC33-59D Industrial Application flat panel lcd display 60Hz Frequency NL6448BC33-59D Industrial Application flat panel lcd display 60Hz Frequency

Large Image :  NL6448BC33-59D Industrial Application flat panel lcd display 60Hz Frequency

Product Details:
Place of Origin: Japan
Brand Name: NEC
Certification: ISO9001
Model Number: NL6448BC33-59D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 PCS / DAY

NL6448BC33-59D Industrial Application flat panel lcd display 60Hz Frequency

Description
Display Colors: 262K (6-bit) , CIE1931 43% Response Time: 8/25 (Typ.)(Tr/Td)
Viewing Angle: 70/70/45/55 (Typ.)(CR≥10) (L/R/U/D) Frequency: 60Hz
Lamp Type: 2 Pcs CCFL Signal Interface: CMOS (1 Ch, 6-bit) , 31 Pins
High Light:

nec lcd touch screen

,

nec lcd screen

NEC LCD Panel NL6448BC33-59D 10.4 inch with 211.2×158.4 mm for Industrial Application



NL6448BC33-59D  Characteristic

Panel Brand : NEC
Panel Model : NL6448BC33-59D
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 10.4 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Active Area : 211.2×158.4 mm
Outline : 243×185.1×11 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 450 cd/m2 (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 43%
Response Time : 8/25 (Typ.)(Tr/Td)
Viewing Angle : 70/70/45/55 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 2 pcs CCFL
Signal Interface : CMOS (1 ch, 6-bit) , 31 pins
Input Voltage : 3.3/5.0V (Typ.)



NEC NL6448BC33-59D Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 450 cd/m2 (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 43% NTSC (CIE1931)
Response Time : 8/25 (Typ.)(Tr/Td)
Viewing Angle : 70/70/45/55 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.40 (Typ./Max.)(5 points)
Sunlight Readable : N



Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

2. Great quality and high purity
Good quality is one secret for our success.

3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!



FAQ

1. Q: Where can I get the price?

A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

2. Q: How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

3. Q: What about the lead time for mass production?

A: It depends on your order quantity and the season you place the order.

4. Q: What are your terms of payment?

A: We accept T/T, Western Union, MoneyGram, PayPal.



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
ED097TC1 E Ink 9.7" 1200×825
ET047TC1 E Ink 4.7" 540×960
ET040TC1 E Ink 4.0" 480×720
ED043WH1 E Ink 4.3" 480×800
ED043WC1 E Ink 4.3" 480×800

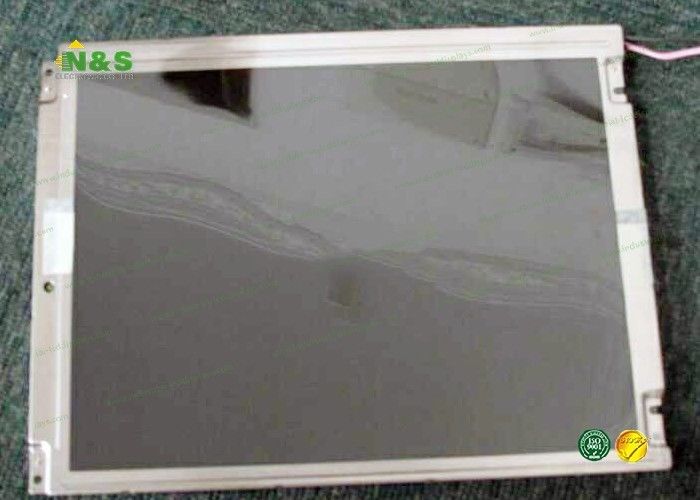

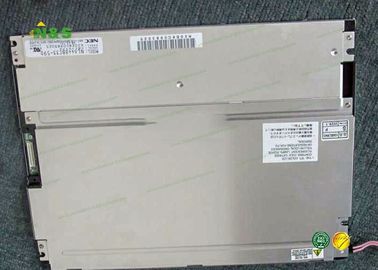

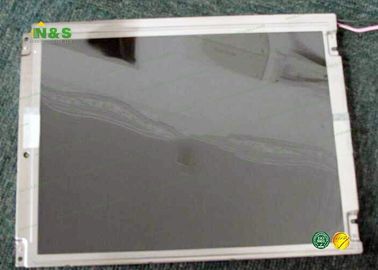

NL6448BC33-59D Picture



NL6448BC33-59D Industrial Application flat panel lcd display 60Hz Frequency 0



NL6448BC33-59D Industrial Application flat panel lcd display 60Hz Frequency 1
