24.0 Inch Normally Black AUO LCD Panel G240HW01 V0 with 531.36×298.89 mm

24.0 Inch Normally Black AUO LCD Panel G240HW01 V0 with 531.36×298.89 mm
24.0 Inch Normally Black AUO LCD Panel G240HW01 V0 with 531.36×298.89 mm 24.0 Inch Normally Black AUO LCD Panel G240HW01 V0 with 531.36×298.89 mm

Large Image :  24.0 Inch Normally Black AUO LCD Panel G240HW01 V0 with 531.36×298.89 mm

Product Details:
Place of Origin: Japan
Brand Name: AUO
Certification: ISO9001
Model Number: G240HW01 V0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 PCS / DAY

24.0 Inch Normally Black AUO LCD Panel G240HW01 V0 with 531.36×298.89 mm

Description
Panel Brand: AUO Panel Model: G240HW01 V0
Panel Type: A-Si TFT-LCD , LCM Panel Size: 24.0 Inch
High Light:

auo display panel

,

auo lcd display





24.0 Inch Normally Black AUO LCD Panel G240HW01 V0 with 531.36×298.89 mm



G240HW01 V0  Quick Details:



Panel Brand : AUO
Panel Model : G240HW01 V0
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 24.0 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : AMVA3, Normally Black, Transmissive
Active Area : 531.36×298.89 mm
Outline : 556×323.2×17 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 300 cd/m2 (Typ.)
Contrast Ratio : 5000:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 72%
Response Time : 16/9 (Typ.)(Tr/Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 10S7P WLED
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins



AUO G240HW01 V0 Mechanical Features

Panel Size : 24.0 inch
Dot Resolution : 1920(RGB)×1080 (FHD)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 91 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.09225×0.27675 mm (H×V)
Pixel Pitch : 0.27675×0.27675 mm (H×V)
Weight : 2.30Kgs (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 531.36×298.89 mm (H×V)
Bezel Area : 535.36×302.89 mm (H×V)
Outline Dimension : 556×323.2 mm (H×V)
Outline Depth : 17.0 (Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without



Packaging & Delivery

Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

Delivery Detail: 2-3 days after receipt of payment

Payment terms: We accept T/T, PayPal, Western Union and others.



Shipment for the LCD Display Panels:

1. Safe & Professional package for our LCD panels.

2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. All our LCD panel will be tested pcs by pcs before been shipped out.



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
X546DLT01 AUO 5.5" 1080×1920
X163QLN01 AUO 1.63" 320×320
H499TLB01 V0 AUO 5.0" 720×1280
H020HD01 V0 AUO 2.0" 176×220
A020AE01 V0 AUO 2.0" 172×72

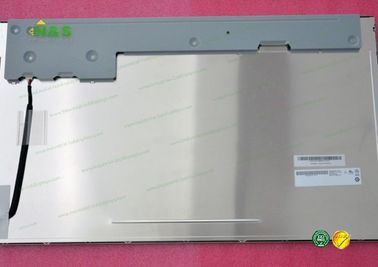

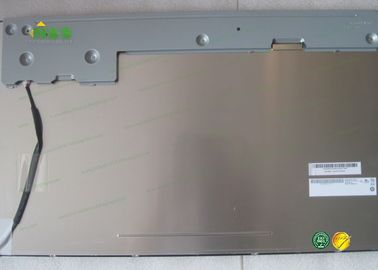

Details Picture for  G240HW01 V0



24.0 Inch Normally Black AUO LCD Panel G240HW01 V0 with 531.36×298.89 mm 0



24.0 Inch Normally Black AUO LCD Panel G240HW01 V0 with 531.36×298.89 mm 1
