Product Details:
|
| Panel Size: | 19.0 Inch | Pixel Density: | 89 PPI |
|---|---|---|---|
| Form Factor: | Flat Rectangle Display | Dot Pitch: | 0.0945×0.2835 Mm (H×V) |
| High Light: | lg display panel,lg lcd display |
||

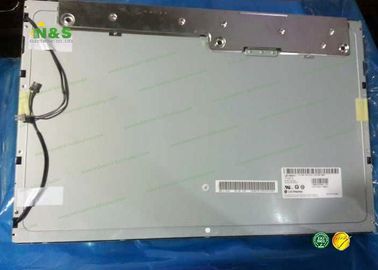

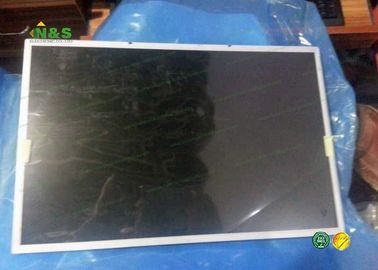

19.0 Inch LM190WX1-TLL1 Normally White Lg Display Panel with 408.24×255.15 mm Active Area
| Panel Brand : | LG Display |
|---|---|
| Panel Model : | LM190WX1-TLL1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 19.0 inch |
| Resolution : | 1440(RGB)×900 , WXGA+ |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 408.24×255.15 mm |
| Outline : | 428×278×15 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) |
| Response Time : | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Our Advantages
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
LG Display LM190WX1-TLL1 Mechanical Features
| Panel Size : | 19.0 inch |
|---|---|
| Dot Resolution : | 1440(RGB)×900 (WXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 89 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0945×0.2835 mm (H×V) |
| Pixel Pitch : | 0.2835×0.2835 mm (H×V) |
| Weight : | 1.67/1.76Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 408.24×255.15 mm (H×V) |
| Bezel Area : | 412.24×259.15 mm (H×V) |
| Outline Dimension : | 428×278 mm (H×V) |
| Outline Depth : | 15.0 (Max.) mm |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LG 1.3 Circular P-OLED | LG Display | 1.3" | 320×320 |
| LH300WQ1-ED01 | LG Display | 3.0" | 240×400 |
| LB050S01-RD02 | LG Display | 5.0" | 800×600 |
| LB050S01-RD01 | LG Display | 5.0" | 800×600 |
| LC430DUY-SHA3 | LG Display | 43" | 1920×1080 |
| LD490EPY-SHP1 | LG Display | 49" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
