Product Details:
|
| Dot Pitch: | 0.085×0.255 Mm (H×V) | Pixel Pitch: | 0.255×0.255 Mm (H×V) |
|---|---|---|---|
| Panel Size: | 20.1 Inch | Dot Resolution: | 1600(RGB)×1200 (UXGA) |
| High Light: | lg display panel,lg lcd display |
||

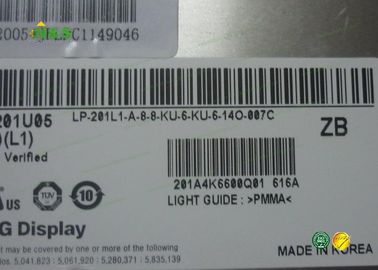

LM201U05-SLL2 20.1 inch LG LCD Panel Normally Black 408×306 mm Active Area
| Panel Brand : | LG Display |
| Panel Model : | LM201U05-SLL2 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 20.1 inch |
| Resolution : | 1600(RGB)×1200 , UXGA |
| Display Mode : | IPS, Normally Black, Transmissive |
| Active Area : | 408×306 mm |
| Outline : | 432×331.5×25.5 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 6.5/7.5 (Typ.)(Tr/Td); 6 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6 pcs CCFL Without Driver |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LG 1.3 Circular P-OLED | LG Display | 1.3" | 320×320 |
| LH300WQ1-ED01 | LG Display | 3.0" | 240×400 |
| LB050S01-RD02 | LG Display | 5.0" | 800×600 |
| LB050S01-RD01 | LG Display | 5.0" | 800×600 |
| LC430DUY-SHA3 | LG Display | 43" | 1920×1080 |
| LD490EPY-SHP1 | LG Display | 49" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LG Display LM201U05-SLL2 Mechanical Features
| Panel Size : | 20.1 inch |
| Dot Resolution : | 1600(RGB)×1200 (UXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 99 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.085×0.255 mm (H×V) |
| Pixel Pitch : | 0.255×0.255 mm (H×V) |
| Weight : | 3.20/3.25Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), |
| Active Area : | 408×306 mm (H×V) |
| Bezel Area : | 413.0×311.0 mm (H×V) |
| Outline Dimension : | 432×331.5 mm (H×V) |
