Product Details:
|
| Form Factor: | Flat Rectangle Display | Dot Pitch: | 0.094×0.282 Mm (H×V) |
|---|---|---|---|
| Pixel Pitch: | 0.282×0.282 Mm (H×V) | Weight: | 2.10Kgs (Typ.) |
| High Light: | auo lcd screen,auo lcd display |
||
22.0 Inch G220svn01.0 Auo Lcd Panel Replacement / Tft Lcd Screen High Resolution
G220SVN01.0 Detailed Product Description
| Panel Brand : | AUO |
| Panel Model : | G220SVN01.0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 22.0 inch |
| Resolution : | 1680(RGB)×1050 , WSXGA+ |
| Display Mode : | MVA, Normally Black, Transmissive |
| Active Area : | 473.76×296.1 mm |
| Outline : | 493.7×320.1×15.75 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m2 (Typ.) |
| Contrast Ratio : | 2000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 70% |
| Response Time : | 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Display Mode : | MVA, Normally Black, Transmissive |
| Brightness : | 250 cd/m2 (Typ.) |
| Contrast Ratio : | 2000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 70% NTSC (CIE1931) |
| Response Time : | 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| A060SE02 V1 | AUO | 6.0" | 800×600 |
| A090XE01 V6 | AUO | 9.0" | 1024×768 |
| A090XE01 V5 | AUO | 9.0" | 1024×768 |
| A043SE01 V3 | AUO | 4.3" | 600×800 |
| H283QN00 V6 | AUO | 2.8" | 240×320 |
| M270DAN01.0 CELL | AUO | 27.0" | 2560×1440 |
| H644DAN01.1 | AUO | 6.5" | 1080×1920 |
| B140RTN02.0 CELL | AUO | 14.0" | 1600×900 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

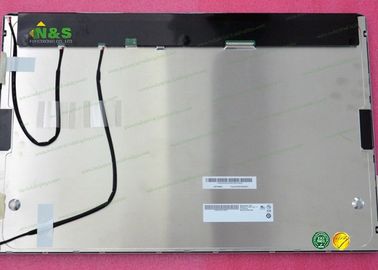

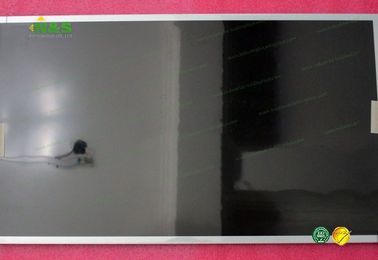

G220SVN01.0 Picture
