Product Details:
|
| Aspect Ratio: | 3:4 (H:V) | Form Factor: | Flat Rectangle Display |
|---|---|---|---|
| Pixel Pitch: | 0.111×0.111 Mm (H×V) | Active Area: | 53.28×71.04 Mm (H×V) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

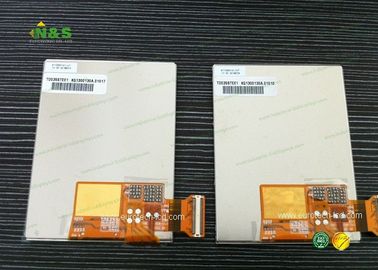

TD035STEE1 Industrial LCD Displays with 53.28×71.04 mm Active Area Normally White
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
TD035STEE1 Characteristic
| Panel Brand : | TPO |
| Panel Model : | TD035STEE1 |
| Panel Type : | LTPS TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 480(RGB)×640 , VGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 53.28×71.04 mm |
| Outline : | 64×85 mm |
| Brightness : | 150 cd/m2 (Typ.) |
| Contrast Ratio : | 200:1 (Typ.)(Transmissive) 8:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) , CIE1931 37% |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/70 (Typ.)(CR≥5) (L/R/U/D) |
| Lamp Type : | 6S1P WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 60 pins |
| Input Voltage : | 3.0/3.0V (Typ.)(VDDIO/VDC) |
| Panel Size : | 3.5 inch |
| Dot Resolution : | 480(RGB)×640 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 228 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.037×0.111 mm (H×V) |
| Pixel Pitch : | 0.111×0.111 mm (H×V) |
| Weight : | 45.4±0.5g |
| Active Area : | 53.28×71.04 mm (H×V) |
| Outline Dimension : | 64×85 mm (H×V) |
| Outline Depth : | 4.4 (Max.) mm |
| Landscape or Portrait : | Portrait type |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| P079ZCZ-3Z2 | Innolux | 7.9" | 768×1024 |
| M315DJJ-Q01 | Innolux | 31.5" | 3840×2160 |
| V320BJ6-Q01 | Innolux | 31.5" | 1366×768 |
| V650DK2-QS2 | Innolux | 65" | 3840×2160 |
| F055A15-6T1 | Innolux | 5.5" | 720×1280 |
| F050A19-601 | Innolux | 5.5" | 720×1280 |
