Product Details:
|
| Panel Brand: | LG Display | Panel Model: | LP156WH4-TLN2 |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 344.232×193.536 Mm |
| Brightness: | 220 Cd/m² (Typ.) | Contrast Ratio: | 400:1 (Min.) |
| High Light: | lg lcd display,lg replacement screen |
||
LP156WH4-TLN2 15.6 inch LG LCD Panel Normally White with 344.232×193.536 mm
LP156WH4-TLN2 Main Parameters
| Panel Brand : | LG Display |
| Panel Model : | LP156WH4-TLN2 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.6 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 344.232×193.536 mm |
| Outline : | 359.3×209.5×5.5 mm |
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Brightness : | 220 cd/m2 (Typ.) |
| Contrast Ratio : | 400:1 (Min.) |
| Display Colors : | 262K (6-bit) , CIE1931 60% |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 strings WLED |
| Signal Interface : | LVDS (1 ch, 6-bit) , 40 pins |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH250Q01-TH03 | LG Display | 2.5" | 320×240 |
| LH320H02-SH03 | LG Display | 3.2" | 320×480 |
| LC550EUJ-SER1 | LG Display | 55" | 1920×1080 |
| LC470EUJ-SER1 | LG Display | 47" | 1920×1080 |
| LH600WF3-SH01 | LG Display | 6.0" | 1080×1920 |
| LC470DUJ-SGE1 | LG Display | 47" | 1920×1080 |
| LM230WF5-TJF1 | LG Display | 23.0" | 1920×1080 |
| LC420DUJ-FFE1 | LG Display | 42" | 1920×1080 |
| LH530WX1-SH02 | LG Display | 5.3" | 720×1280 |
| LH500WX2-SH01 | LG Display | 5.0" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 220 cd/m2 (Typ.) |
| Contrast Ratio : | 400 : 1 (Min.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 60% NTSC (CIE1931) |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.40/1.60 (Typ./Max.)(13 points) |
| Sunlight Readable : | N |

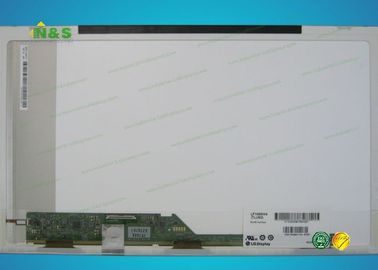

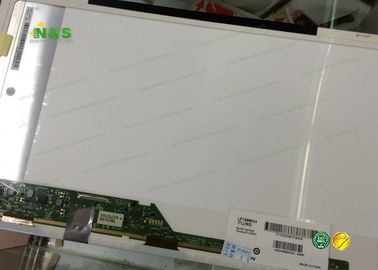

LP156WH4-TLN2 Picture
