Product Details:
|
| Dot Resolution: | 1024(RGB)×768 (XGA) | Dot Pitch: | 0.099×0.297 Mm (H×V) |
|---|---|---|---|
| Pixel Pitch: | 0.297×0.297 Mm (H×V) | Active Area: | 304.128×228.096 Mm (H×V) |
| Bezel Area: | 308.8×232.7 Mm (H×V) | Outline Depth: | 18.0/19.0 (Typ./Max.) Mm |
| High Light: | nec tft lcd,nec lcd screen |
||
Normally White NL10276BC30-04F NEC LCD Panel 15.0 inch LCM 1024×768 200 200:1 262K CCFL LVDS
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
NL10276BC30-04F Specification
| Panel Brand : | NEC |
| Panel Model : | NL10276BC30-04F |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 304.128×228.096 mm |
| Outline : | 350×265 mm |
| Surface : | Hard coating (3H), Antireflection |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 200:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 15/40 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/50 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | TBD |
| Surface : | Hard coating (3H), Antireflection |
| Active Area : | 304.128×228.096 mm (H×V) |
| Bezel Area : | 308.8×232.7 mm (H×V) |
| Outline Dimension : | 350×265 mm (H×V) |
| Outline Depth : | 18.0/19.0 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
| V1835HC1H1 | E Ink | 3.5" | 320×480 |

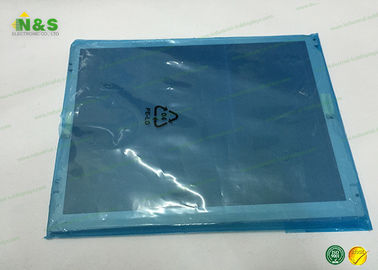

NL10276BC30-04F NEC LCD Panel Picture
