Product Details:
|
Product Number: | PD064VT5 | Resolution: | 640×480 |
---|---|---|---|
C/R: | 400:1 | Brightness: | 400 |
Backlight: | WLED | Interface: | LVDS |
High Light: | industrial lcd screen,industrial lcd panel |

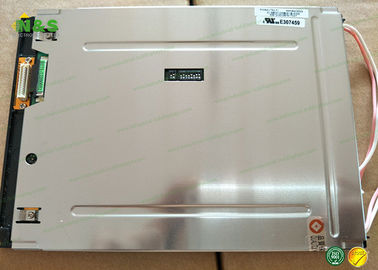

400cd/m2 PVI 6.4 inch TFT LCD Screen PD064VT8 VGA 640(RGB)*480
Panel Model : PD064VT5
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 6.4 inch
Resolution : 640(RGB)×480 , VGA
Active Area : 129.6×97.44 mm
Outline : 175.4×126.9 mm
Surface : Antiglare
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 400:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 15/25 (Typ.)(Tr/Td)
Viewing Angle : 50/50/15/35 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 2 pcs CCFL
Signal Interface : TTL (1 ch, 6-bit) , 31 pins
Input Voltage : 5.0V (Typ.)(VCC)
Panel Model | Size | Type | Resolution | cd/m2 | C/R |
LQ064V3DG01 | 6.4" | LCM | 640×480 | 350 | 350:1 |
PD064VT5 | 6.4" | LCM | 640×480 | 400 | 400:1 |
PD064VT4 | 6.4" | LCM | 640×480 | 400 | 400:1 |
PD064VT2 | 6.4" | LCM | 640×480 | 150 | 400:1 |
LB064V02-TD01 | 6.4" | LCM | 640×480 | 250 | 400:1 |
LQ64D343 | 6.4" | LCM | 640×480 | 300 | 150:1 |
V16C6448AC | 6.4" | LCM | 640×480 | 300 | 180:1 |
LQ64D341 | 6.4" | LCM | 640×480 | 300 | 100:1 |
LQ64D343R | 6.4" | LCM | 640×480 | 300 | 150:1 |
LP064V1 | 6.4" | LCM | 640×480 | 120 | 100:1 |
