Product Details:
|
| Product Number: | PD064VT8 | Resolution: | 640×480 |
|---|---|---|---|
| C/R: | 400:1 | Brightness: | 400 |
| Backlight: | WLED | Interface: | LVDS |
| High Light: | industrial lcd screen,industrial lcd panel |
||

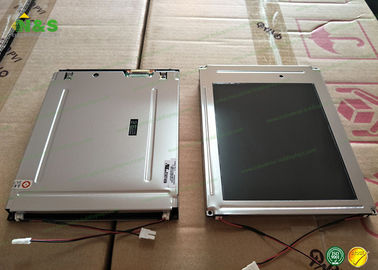

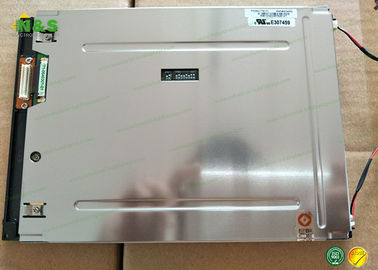

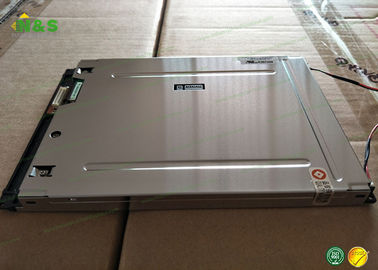

400cd/m2 PVI 6.4 inch TFT LCD Screen PD064VT8 VGA 640(RGB)*480
| Panel Model : | PD064VT8 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 6.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 129.6×97.44 mm |
| Outline : | 175.4×126.9 mm |
| Surface : | Antiglare |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 3S8P×2CN WLED Without Driver |
| Signal Interface : | TTL (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 5.0V (Typ.)(VCC) |
| Panel Brand : |  |
|---|---|
| Panel Model : | PD064VT8 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Application : |
|
| Operating Temperature : | -30 ~ 80 °C |
| Storage Temperature : | -30 ~ 80 °C |
| Specific Feature : |
|
| Remarks : | Compatible with VGA-480, VGA-400, VGA-350 mode, With reverse scan switch. |
