Product Details:
|
| Dot Resolution: | 1600(RGB)×1200 (UXGA) | Pixel Configuration: | RGB Vertical Stripe |
|---|---|---|---|
| Pixel Density: | 94 PPI | Aspect Ratio: | 4:3 (H:V) |
| Form Factor: | Flat Rectangle Display | Dot Pitch: | 0.090×0.270 Mm (H×V) |
| Pixel Pitch: | 0.270×0.270 Mm (H×V) | Weight: | 2.70/2.98Kgs (Typ./Max.) |
| High Light: | nec lcd touch screen,nec tft lcd |
||
21.3 inch Normally Black NL160120AM27-13A NEC LCD Panel with 432×324 mm Active Area
NL160120AM27-13A Information
| Panel Brand : | NEC |
| Panel Model : | NL160120AM27-13A |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 21.3 inch |
| Resolution : | 1600(LCR)×1200 , UXGA |
| Display Mode : | SA-SFT, Normally Black, Transmissive |
| Active Area : | 432×324 mm |
| Outline : | 457×350 mm |
| Surface : | Antiglare |
| Brightness : | 1650 cd/m² (Typ.) |
| Contrast Ratio : | 850:1 (Typ.) |
| Display Colors : | Grayscale (8-bit) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 16 pcs CCFL Embedded (Inverter) |
| Signal Interface : | LVDS (2 ch, 8-bit) |
| Input Voltage : | 12.0V (Typ.) |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
| Panel Size : | 21.3 inch |
| Dot Resolution : | 1600(RGB)×1200 (UXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 2.70/2.98Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 432×324 mm (H×V) |
| Bezel Area : | 438.2×330.0 mm (H×V) |
| Outline Dimension : | 457×350 mm (H×V) |
| Outline Depth : | 21.5±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
| V1835HC1H1 | E Ink | 3.5" | 320×480 |

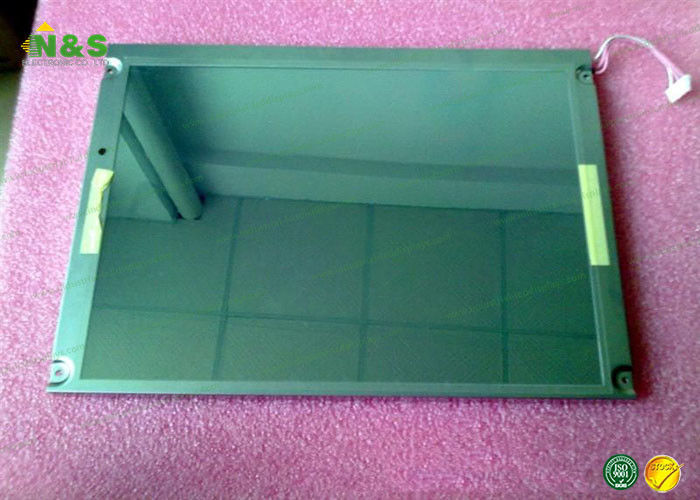

NL160120AM27-13A NEC LCD Panel Picture
