Product Details:
|
| Outline: | 350×284.8 Mm | Active Area: | 305.28×244.224 Mm |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024 , SXGA | Display Colors: | Full Color , CIE1931 59% |
| High Light: | nec tft lcd,nec lcd screen |
||
NL128102AC23-02 NEC LCD Panel Normally White 15.4 inch for Desktop Monitor panel
NL128102AC23-02 Detail
| Panel Brand : | NEC |
| Panel Model : | NL128102AC23-02 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.4 inch |
| Resolution : | 1280(RGB)×1024 , SXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 305.28×244.224 mm |
| Outline : | 350×284.8 mm |
| Surface : | Antireflection |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 200:1 (Typ.) |
| Display Colors : | Full color , CIE1931 59% |
| Response Time : | 7 (Typ.)(Tr) |
| Viewing Angle : | 60/60/50/45 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 4 pcs CCFL Embedded (Inverter) |
| Signal Interface : | Analog RGB |
| Input Voltage : | 12.0V (Typ.) |
Packing & Delivery for our LCD Screen Panel Replacements:
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
| Panel Size : | 15.4 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 106 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0795×0.2385 mm (H×V) |
| Pixel Pitch : | 0.2385×0.2385 mm (H×V) |
| Weight : | 1.56/1.62Kgs (Typ./Max.) |
| Surface : | Antireflection |
| Active Area : | 305.28×244.224 mm (H×V) |
| Bezel Area : | 310.0×248.9 mm (H×V) |
| Outline Dimension : | 350×284.8 mm (H×V) |
| Outline Depth : | 21.0/21.5 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| PW090XUA | E Ink | 9.0" | 640×220 |
| PW090XU8 | E Ink | 9.0" | 640×220 |
| PW090XU7 | E Ink | 9.0" | 640×220 |
| PW090XU6 | E Ink | 9.0" | 640×220 |
| PW090XSA | E Ink | 9.0" | 640×220 |
| PW090XS8 | E Ink | 9.0" | 640×220 |
| PW084XU2 | E Ink | 8.4" | 480×234 |
| PW084XS6 | E Ink | 8.4" | 480×234 |
| PW084XS3 | E Ink | 8.4" | 480×234 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

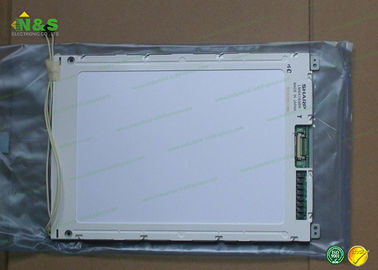

NL128102AC23-02 NEC LCD Panel Picture
