Product Details:
|
Panel Size: | 10.0 Inch | Resolution: | 800(RGB)×600 , SVGA |
---|---|---|---|
Display Mode: | TN, Normally White, Transmissive | Signal Interface: | LVDS (1 Ch, 6-bit) , 14 Pins |
High Light: | industrial touch screen display,industrial lcd screen |
Panel Size : | 10.0 inch | |
Dot Resolution : | 800(RGB)×600 (SVGA) | |
Pixel Configuration : | RGB Vertical Stripe | |
Pixel Density : | 100 PPI | |
Aspect Ratio : | 4:3 (H:V) | |
Form Factor : | Flat Rectangle Display | |
Dot Pitch : | 0.0845×0.2535 mm (H×V) | |
Pixel Pitch : | 0.2535×0.2535 mm (H×V) | |
Weight : | 390g (Typ.) | |
Surface : |
|
|
Active Area : | 202.8×152.1 mm (H×V) | |
Bezel Area : | 207.2×156.5 mm (H×V) | |
Outline Dimension : | 236×168 mm (H×V) | |
Outline Depth : | 7.15 (Typ.) mm | |
Holes & Brackets : | Face mounting holes (2-Φ2.5, 2-R1.25) | |
Landscape or Portrait : | Landscape type | |
Touch Panel : | Embeded (4-wire Resistive) | |
|
||
Display Mode : |
|
|
Brightness : | 150 cd/m² (Typ.) | |
Contrast Ratio : | 250 : 1 (Typ.) (Transmissive) | |
Display Color : | 262K (6-bit) | |
Response Time : | 35/15 (Typ.)(Tr/Td) | |
Viewing Angle : | 50/50/20/40 (Typ.)(CR≥10) (L/R/U/D) | |
White color Chromaticity : | Wx:0.310; Wy:0.330 | |
Sunlight Readable : | N | |
|
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LM-CA53-22NAZ | SANYO | 9.4" | 640×480 |
LM-DA53-22NTW | SANYO | 8.0" | 640×480 |
LCM-5483-24NHK | SANYO | 8.5" | 640×480 |
LM-KE55-33NTK | SANYO | 9.4" | 640×480 |
LM-GD53-22NTZ | SANYO | 11.3" | 1024×768 |
LM-GD53-22NAZ | SANYO | 13.3" | 1024×768 |
LM-GK53-22NTX | SANYO | 13.6" | 1024×768 |
LM-FG53-22NTK | SANYO | 11.3" | 800×600 |
LM-FG53-22NDK | SANYO | 11.3" | 800×600 |
LM-FG53-22NAK | SANYO | 11.3" | 800×600 |
LM-FE53-22NTK | SANYO | 11.3" | 800×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.

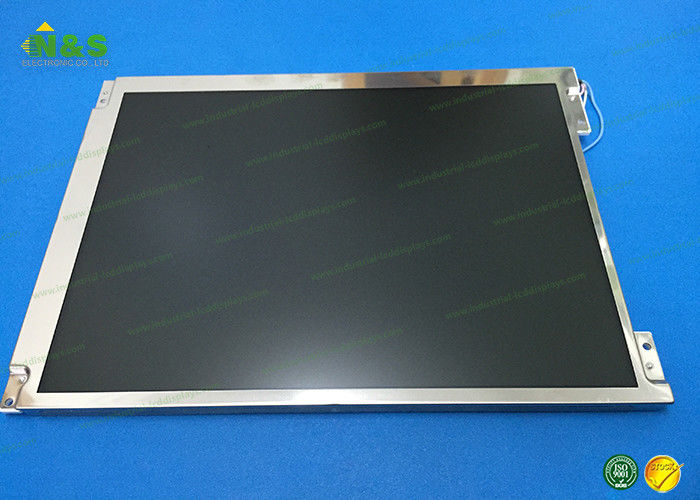

TM100SV-02L04 Picture
