Product Details:
|
| Panel Brand: | NEC | Panel Model: | NL8048BC24-09D |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 9.0 Inch |
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | UA-SFT, Normally Black, Transmissive |
| High Light: | nec tft lcd,nec lcd screen |
||
NL8048BC24-09D NEC LCD Panel 9.0 inch LCM 800×480 400 800:1 262K/16.7M WLED LVDS
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
NL8048BC24-09D Product Information
| Panel Brand : | NEC |
| Panel Model : | NL8048BC24-09D |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 9.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | UA-SFT, Normally Black, Transmissive |
| Active Area : | 196.8×118.08 mm |
| Outline : | 220.5×136.5×8.7 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 60% |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3 strings WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED060KG1 | E Ink | 6.0" | 1072×1448 |
| ED060KC1 | E Ink | 6.0" | 1072×1448 |
| ED060XC9 | E Ink | 6.0" | 758×1024 |
| ED060XD7 | E Ink | 6.0" | 758×1024 |
| ED080TC1 | E Ink | 8.0" | 1600×1200 |
| ED097TC1 | E Ink | 9.7" | 1200×825 |
| ET047TC1 | E Ink | 4.7" | 540×960 |
| ET040TC1 | E Ink | 4.0" | 480×720 |
| Panel Size : | 9.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 103 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.082×0.246 mm (H×V) |
| Pixel Pitch : | 0.246×0.246 mm (H×V) |
| Weight : | 275/290g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 196.8×118.08 mm (H×V) |
| Bezel Area : | 200.2×120.4 mm (H×V) |
| Outline Dimension : | 220.5×136.5 mm (H×V) |
| Outline Depth : | 8.2±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

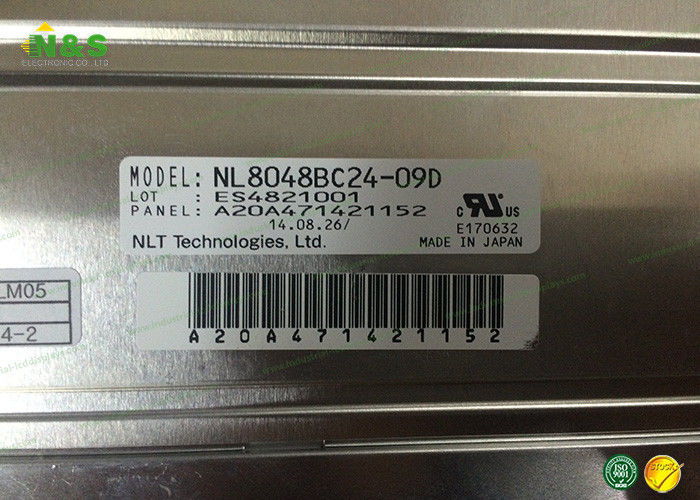

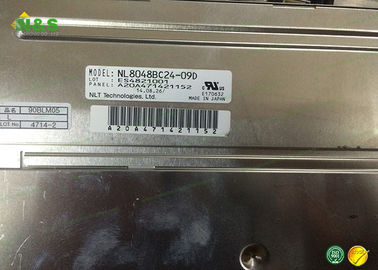

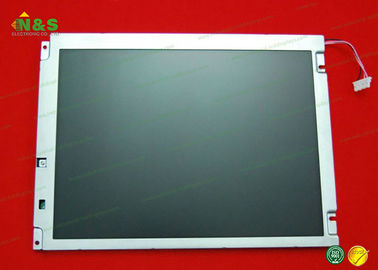

NL8048BC24-09D Picture
