Product Details:
|
| Panel Brand: | NEC | Panel Model: | NL10260BC19-01D |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.9 Inch |
| Resolution: | 1024(RGB)×600 , WSVGA | Display Mode: | UA-SFT, Normally Black, Transmissive |
| High Light: | nec tft lcd,nec lcd screen |
||
NL10260BC19-01D NEC LCD Panel 8.9 inch with 195.072×113.4 mm Active Area
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
NL10260BC19-01D Detail
| Panel Brand : | NEC |
| Panel Model : | NL10260BC19-01D |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.9 inch |
| Resolution : | 1024(RGB)×600 , WSVGA |
| Display Mode : | UA-SFT, Normally Black, Transmissive |
| Active Area : | 195.072×113.4 mm |
| Outline : | 214×129×6.2 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 60% |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
| V1835HC1H1 | E Ink | 3.5" | 320×480 |
| Panel Size : | 8.9 inch |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 17:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0635×0.1890 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1890 mm (H×V) |
| Weight : | 170/180g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 195.072×113.4 mm (H×V) |
| Bezel Area : | 197.8×116.0 mm (H×V) |
| Outline Dimension : | 214×129 mm (H×V) |
| Outline Depth : | 4.2/6.2 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.

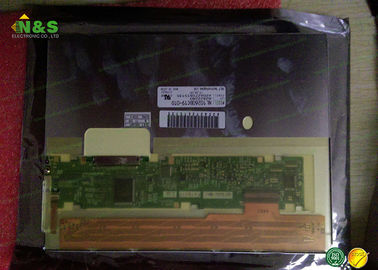

NL10260BC19-01D Picture
