Product Details:
|
| Outline Depth: | 13.0/13.7 (Typ./Max.) Mm | Dot Resolution: | 1024(RGB)×768 (XGA) |
|---|---|---|---|
| Pixel Density: | 105 PPI | Aspect Ratio: | 4:3 (H:V) |
| Weight: | 755/785g (Typ./Max.) | Active Area: | 245.76×184.32 Mm |
| Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) |
| High Light: | nec tft lcd,nec lcd screen |
||
Normally White NL10276BC24-13C NEC LCD Panel 12.1 inch with 245.76×184.32 mm Active Area
NL10276BC24-13C Detail
| Panel Brand : | NEC |
| Panel Model : | NL10276BC24-13C |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 12.1 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 245.76×184.32 mm |
| Outline : | 280×210×13.7 mm |
| Surface : | Clear, Hard coating (2H), Antireflection |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 40% |
| Response Time : | 8/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/45/55 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Optional |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
| Panel Size : | 12.1 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 105 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.080×0.240 mm (H×V) |
| Pixel Pitch : | 0.240×0.240 mm (H×V) |
| Weight : | 755/785g (Typ./Max.) |
| Surface : | Clear, Hard coating (2H), Antireflection |
| Active Area : | 245.76×184.32 mm (H×V) |
| Bezel Area : | 249.0×187.5 mm (H×V) |
| Outline Dimension : | 280×210 mm (H×V) |
| Outline Depth : | 13.0/13.7 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
| V1835HC1H1 | E Ink | 3.5" | 320×480 |

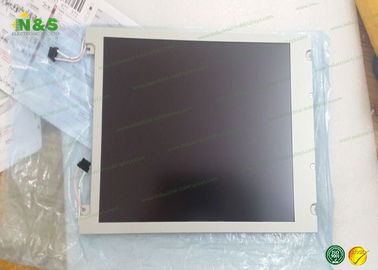

NL10276BC24-13C NEC LCD Panel Picture
