Product Details:
|
| Brightness: | 200 Cd/m² (Typ.) | Display Colors: | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 60% |
|---|---|---|---|
| Response Time: | 20 (Typ.)(Tr) | Viewing Angle: | 50/50/30/45 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | nec tft lcd,nec lcd screen |
||
6.3 Inch NL10276BC12-01 TFT LCD Screen Normally White with 129.024×96.768 mm
NL10276BC12-01 Detail
| Panel Brand : | NEC |
| Panel Model : | NL10276BC12-01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 6.3 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 129.024×96.768 mm |
| Outline : | 178.8×126.8 mm |
| Surface : | Hard coating (2H), Antireflection |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 200:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 60% |
| Response Time : | 20 (Typ.)(Tr) |
| Viewing Angle : | 50/50/30/45 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
| Panel Size : | 6.3 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 201 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.042×0.126 mm (H×V) |
| Pixel Pitch : | 0.126×0.126 mm (H×V) |
| Weight : | 300g (Max.) |
| Surface : | Hard coating (2H), Antireflection |
| Active Area : | 129.024×96.768 mm (H×V) |
| Bezel Area : | 133.8×101.4 mm (H×V) |
| Outline Dimension : | 178.8×126.8 mm (H×V) |
| Outline Depth : | 12.0±0.5 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED0970C1 | E Ink | 9.7" | 1200×825 |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

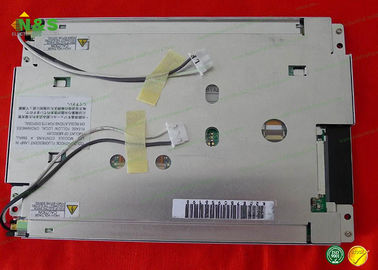

NL10276BC12-01 NEC LCD Panel Picture
